US$4,500.00-12,000.00
|
1 set
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Precision
Normal Precision
Certification
CE, ISO 9001
Worktable Travel(X *Y)
200*300 mm
Main Spindle Speed
60 Rpm
Power Supply
3n-380V/50Hz
Transport Package
to Be Packed in Wooden Cases, Suitble for Export
Specification
1060*750*1700 mm; weight 536kg
Origin
Taizhou, Jiangsu, China
Production Capacity
100set/Month
Product Description

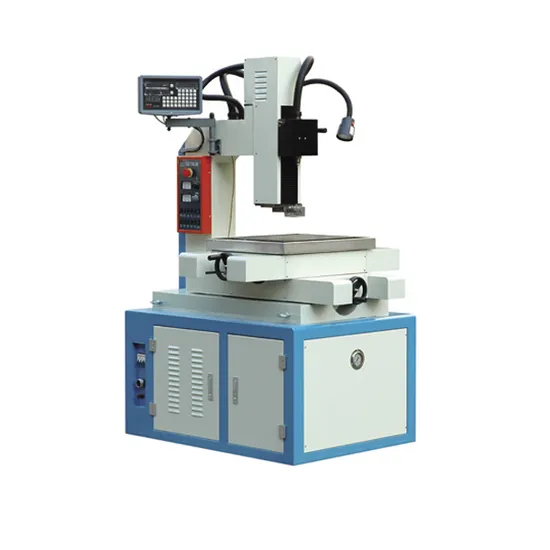

DD703 High Speed Micro Hole Drilling EDM from TOPSCNC
Technique parameters
Technique parameters | unit | DD703 | DD703.30 | DD703.32 | DD703.40 |
Worktable size | mm | 320x440 | 320x440 | 360x610 | 460x690 |
Worktable travel | mm | 200×300 | 300×400 | 320×400 | 400x500 |
Z-axis travel | mm | 280 | 300 | 300 | 300 |
Max.load on table | mm | 200 | 200 | 200 | 200 |
Main spindle speed | rpm | 60 |
Diameter of electrode | mm | φ0.3-φ3 |
MAX.distance from guider to worktable | mm | 240 | 300 | 400 | 500 |
water tank | L | 25 |
Filtering model | | Shallow-gap filter |
Working medium | | water |
MAX.working pressure | Mpa | 7 |
Power supply | | 380V,3Ph,50Hz |
Max.woking current | A | 30 |
Power consumption | Kw | 3 |
Machine weight | kg | 700 | 850 | 1300 | 1700 |
Machine demensions | mm | 1060×750×1700 | 1060×750×1760 | 1550×1170×1800 | 1800x1380x1800 |
Products advantages
1) It can drill small holes on the materials. Such as stainless steel, quenched steel, carbide,copper, aluminium,etc
2) It can drill the deep holes with diameters 0.3-3mm and depth-diameter ratio 200:1 or more.
3)Working speed is 30-60mm depth per minute it can directly drill on oblique curved surfaces.
4) It can water as workingfluid.
5) It can become a machine with multi-axis numerical control or numerical display for the user requirement.
Our Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
TOPSCNC people wish to share success with you in the future!
Our Services
1) Quality & Service : We are confident in our products .Please choose TOPSCNC, we'll never let you down.
2) Price :Because we are factory,so you can get good products at the best price.
3 )Warranty: One year after shipment but consumables are not included.
Packing & Delievery
Packing Details : To be packed in wooden cases, suitable for export. |
Delivery Details : 18-25 days . |
MOQ: 1 set |
Port: Shanghai or any China port |
Payment Method : L/C or T/T |
Validity: one year |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Normally our delivery time is 28~35 days, but if we have the goods you want in our stock, then the delivery time will be in about three weeks or less.
Q: Do you provide samples ? is it free or extra ?
A: No, we could not offer the sample.
Q: What is your terms of payment ?
A: Term payment: T/T30% with the order, the rest 70% of total amount T/T before shipment.
Q: Could we use our own brand on your machine ?
A: Yes, we could love to accept.
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China
Web:topscnc.en.made-in-china.com
>>
