Top Quality 6060 Aluminum Shoes Mold Milling Metal Mould CNC Router Machine for Copper

Product Description

Top Quality 6060 Aluminum Shoes Mold Milling Metal Mould CNC Router Machine for Copper
Product Description
FIRMCNC Brand mould cnc milling engraving machine mainly used for all kinds of metal materials, such as aluminum, copper, stainless steel, carbon steel, fiber glass etc.

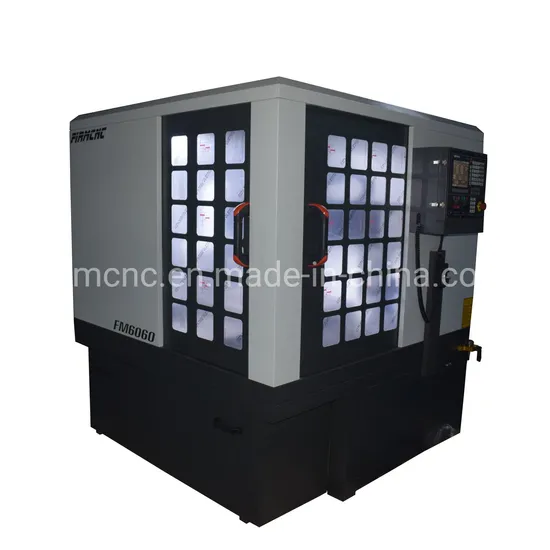

This is new design full cover 6060 mould cnc machine with NK300 control system, servo motor, fast speed and high precision.
the standard model have FM4040, FM6080, FM6090, machine can be customized.
Mould cnc milling machine features:
#ATC type, linear auto tool changer or circular tool changer for choose
# Whole machine cast by iron, very strong, table moving, high precision.
# Imported Hiwin square rails and TBI ball screw for 3 axis.
# Working area 600*600*200mm, Z axis zone can according your need make it.
# Japan Yaskawa servo motor and drivers,leadshine hybrid servo motor for option.
# Syntec controller, TK100 controller, DSP control system and NC Studio for option.
# Machine with lubrication system, spindle cover, Japan OMRON limit switch and France electrical components.
Product Parameters

Standard Configuration
Model & Name	FM6060
Brand	FIRMCNC
Working Area	600*600*300mm
Control system	Intelligent integration NK300 control system
Spindle	5.5KW ATC water cooling spindle
Auto tool changer	Circular auto tool changer 12 tools
Motor and drivers	Japan YASKAWA servo motor and drivers 750W
Rail guide	Taiwan 25 HIWIN square rails
Ball Screw	Taiwan TBI grinding ball screw
Inverter	Taiwan Delta inverter
Electronic components	France electronic components
Software	Artcam software
Limit switch	Japan Omron limit switch
Working Dictate	G-code
Water cooling system	Included
Technical Parameter
Working area	600*600*300mm
Spindle power	5.5kw ATC water cooling spindle
Rotary axis diameter	200mm
Spindle speed	24000RPM
Working Accuracy (mm)	≤0.01mm
X,Y,Z Traveling Positioning Accuracy (mm)	≤0.01mm
Max. Idling Speed	60m/min
Max. Working speed	40m/min
Commend Code	G Code
Diameter of Cutter	φ3.175-φ12.7
Cooling Mode	Water-cooling
Working voltage	380V 3P 50HZ

Main configuration of cnc milling machine
Samples of mould cnc milling machine
# It is suitable for engraving,milling and drilling compactly all sorts of materials
such as steel,copper,aluminum and plastics.
# Widely apply to automotive,injection mould,ironware mould and engrave mould industries.
# Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand,
graphics and words of three-dimensional and outside surface's sleeking of large size.
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with
strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc router, mould cnc milling machine, wood lathe, wood cutting machine, cnc lathe, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges
Packing and shiping
1.Outside package: Standard marine export plywood case.
2.Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
3.Improved package, much more strong and environmental protection.
4.We can also make package according to your requests.
Delivery Detail: Shipped in 10-15 working days after payment.
Customer visit factory
FAQ
How to choose the suitable mould cnc router machine?
1. What materials you want to process with?( stainless steel, aluminum,brass, plastic...)
2. Effective working size? ( 400*400mm, 600*600mm, 600*900mm etc)
3. Do you buy it for personal use or selling?
Could I make an free sample ?
1.Yes, pls send the vectorgraph marking file and samples to us.Or we can find same materials to test it.
2.After sample finished, we can return it and also make videos,details photos for your reference.

How about the lead time,package and delivery?
1.Standard model 10-15 working days after receiving the payment.
2.There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking,solid export wooden case.
3.Shipping by sea or railway transport.

How to install and use this mould cnc milling machine?
The machine is already installed before shipping. We have very detailed English manual for mould cnc milling machine,nearly all customers can learn it well by themselves very easily.We will also guide you if you have any doubts.

What if there is something wrong with mould cnc router?
Pls contact us at first time and do not try to fix it by yourself.We will help to solve it.

---
