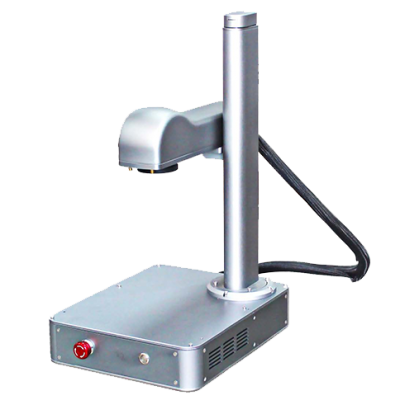

HBN M5 Collection Intelligent Small Laser Marking Machine - Product Specification
Overview
The HBN M5 Collection redefines compact laser marking with its innovative, computer-free design. As the most portable solution in our fiber laser series, this ultra-lightweight (8.2kg) system delivers industrial-grade performance in a space-saving package. Perfect for mobile operations and limited workspace environments.
Key Advantages
True Portability: 364×285×465mm compact size with foldable design - 70% smaller than standard desktop markers
Computer-Free Operation: Unique screenless design (external computer required for file transfer)
Dual Power Options: 20W (M5-20+) and 25W (M5-30+) configurations
Rugged Construction: Military-grade aluminum alloy frame withstands field conditions
Quick Deployment:<5 minute setup time with tool-free assembly
Technical Specifications
ParameterM5-20+M5-30+
| Laser Source | MFP-20M Fiber Laser | MFP-25M Fiber Laser |
| Output Power | 19W (±3%) | 25W (±3%) |
| Marking Area | 100-150mm (customizable) | 100-150mm (customizable) |
| Max Speed | 10,000mm/s | 10,000mm/s |
| Precision | ±0.002mm repeatability | ±0.002mm repeatability |
| Minimum Feature Size | 0.1mm line width | 0.1mm line width |
| Power Requirements | 220V/50Hz (110V adaptable) | 220V/50Hz (110V adaptable) |
| Cooling System | Silent air cooling (<35dB) | Silent air cooling (<35dB) |
Material Compatibility
✔ Metals: Iron, copper, aluminum, gold, silver, titanium
✔ Plastics: PC, ABS, PVC, composites
✔ Specialty: Anodized surfaces, coated metals, ceramic tags
Industry-Specific Applications
Jewelry & Watchmaking: Precision engraving for serial numbers and logos
Electronics Manufacturing: PCB marking and component identification
Field Service Teams: On-site equipment tagging and maintenance marking
Artisan Workshops: Custom designs on metal gifts and accessories
Aerospace: Part tracking on aluminum and titanium components
Operational Features
◈ Smart Cooling: Auto-adjusting fan maintains optimal temperature
◈ Energy Efficient: 30% lower power consumption than comparable models
◈ Extended Lifespan: 100,000+ operational hour laser source rating
◈ Universal Connectivity: Standard USB/Wi-Fi for computer interface
Package Contents
Main laser marking unit (8.2kg)
Quick-start guide with safety manual
Power adapter (220V/110V compatible)
Basic protective goggles
Carrying case with custom foam insert (optional)
>>
