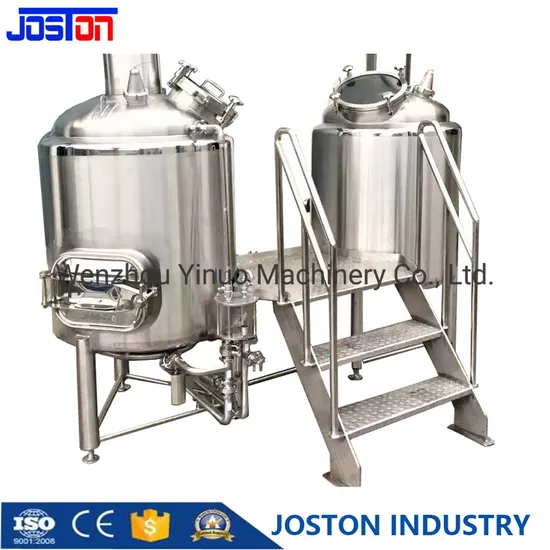

Stainless Steel Home Brewing Microbrewery Equipment with Agitator System

Product Description

Stainless Steel Home Brewing Equipment Microbrewery System is widely used in the brewpub ,bar and restaurant to brew beer. The Brewhouse system including the following :Mash tank,Lauter tank,kettle ,whiripool tank,hops adding system and pipeline etc.
Brewhouse can be in various combination:
1. Two vessels: Mash/lauter tank, Kettle/whirlpool tank
2. Three vessels: Mash/lauter tank,whirlpool, Kettle;Or Mash tun, Lauter tank, Kettle/whirlpool tank;
3. Four vessels: Mash tun, lauter tank, kettle, whirlpool tank
Brewhouse system has three kinds of heating method:
1. Electric heating
2. Steam heating
3. Direct fire heating
Brewhouse system Standard Configuration :
1. Available capacity from 1 to 60 BBL(HL)
2. Equipment use 100% Tig welding and sanitary polish surface
3. Inside shell use SS304 material ( SS316L material is optional)
4. Out side cladding shell use SS304 material (copper material cladding is optional)
5. Platform material is SS304
6. Top mounted agitator system ( bottom mounted is optional)
7. Plate heat exchanger ,Wort pumps,flow meter,valves and pipeline are all SS304 material
8. PLC automatic control or semi-automatic control or manual control
beer production whole process should takes about 12-20 days to prepare wort and stock solution from the initial malt crushing process in different tanks, through saccharification, filtration, boiling, swirling sedimentation and fermentation.
After fermentation, beer raw pulp is obtained, which can be directly drunk and sold If equipped with fine filtration and sterilization equipment, beer can be bottled or tinned for a longer time.
(1). Compact structure, small floor area, detachable and convenient operation.
(2). Quick installation and connection shall be adopted for equipment pipeline connection, which is convenient
for cleaning,
(3). maintenance and repair in the production process.
(4). Pipe fittings and valves are well-known durable brands at home and abroad.
(5). Argon arc welding is adopted for welding.
(6). Polishing accuracy up to Ra0.4μ m.
(7). It can be customized according to the process and requirements of customers.

Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
BE-50	50L/day	14US Gallon	0.15m2	550mm	1500mm
BE-100	100L/day	26US Gallon	0.25m2	650mm	2000mm
BE-200	200L/day	53US Gallon	0.25m2	910mm	2200mm
BE-300	300L/day	79US Gallon	0.3m2	910mm	2300mm
BE-500	500L/day	132US Gallon	0.5m2	1160mm	2400mm
BE-600	600L/day	158US Gallon	0.6m2	1160mm	2500mm
BE-700	700L/day	185US Gallon	0.7m2	1260mm	2500mm
BE-800	800L/day	212 US Gallon	0.8m2	1260mm	2500mm
BE-1000	1000L/day	264US Gallon	1.0m2	1360mm	2800mm
BE1500	1500L/day	396US Gallon	1.5m2	1560mm	2900mm
BE-2000	2000L/day	528US Gallon	2.0m2	1960mm	3150mm
BE-2500	2500L/day	660US Gallon	2.5m2	1960mm	3200mm
BE-3000	3000L/day	792US Gallon	3.0m2	2060mm	3800mm
BE-5000	5000L/day	1320US Gallon	5.0m2	2260mm	4400mm

Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.
FAQ
Q :What about your factory?
A :Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
Q :How long the warranty will be?
A :We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
Q :Which kind payment do your company do now ?
A :We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
Q :Do you supply installation equipment in oversea?
A :Yes, if need, we can send our engineer to your plant to help you do installation and commission.
Q :How can we know the order production status ?
A :We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here.
Q :how about your company after-sale serivce ?
A :1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.

---
