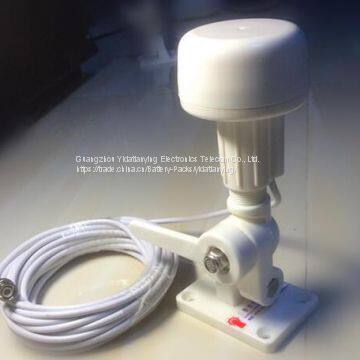

Marine GPS antenna

Product Description

Product Description
Marine GPS antenna
Antenna connector: BNC
Center frequency Center frequency: 1575.42 MHz
Voltage standing wave ratio V.S.W.R: 1.5 or less
Plus or minus 10 MHz bandwidth
Right-hand Polarization: antenna
Impedance Impendence: 50 Ω
Amplifier Gain LNA Gain (Without cable) : 28 plus or minus 2 db
The Noise coefficient of Noise Figure: 1.5 or less
DC Voltage, DC Voltage from 3.0 V to 5.0 V DC
DC current DC current: 30 ma or less
Weight: the Weight <400 g
Exterior Size Size: 127 x 96 mm
Cable to Cable: SYV50-3
8 m line length:
The Connector type Connector: BNC
Working temperature Working Temp: - 30 ℃ ~ + 65 ℃
Waterproof Waterproof: 100%

---
