13.5 Tonne Mini Digger MIDI Excavator Swe135e-3h Trackhoes Max. Ground Digging Distance 8185 mm Max. Unloading Height 6145 mm Engine Ycf36125 92 Kw

Product Description

13.5 Tonne Mini Digger midi excavator SWE135E-3H Trackhoes Max. ground digging distance 8185 mm Max. unloading height 6145 mm engine YCF36125 92 kW
For loading capacity 97.8 tonnes or 125 tonnes excavators, please contact us.
Product Parameters
Quick Fact DIMENSIONS

Operating weight	13500 kg
Standard bucket capacity	0,5- 0,7 m³
Shipping length	7838 mm
Shipping width	2850 mm
Height over cabin	2 550 mm

HYDRAULIC SYSTEM

Type	variable piston pump
Displacement	172
Hydraulic pressure	25 Mpa

WORKING RANGE

Max. digging depth	5530 mm
Max. digging reach	8330 mm
Max. bucket digging force	100 kN
Max. arm digging force	76 kN

Product Description
Features and Benefits RELIABLE Engine We chose the powerful Yuchai Engine, ensuring intensive work in a severe environment.
With lower emission level, it delivers from 92 kW without compromising power, performance, and in respect for environment.

PREMIUM COMPONENTS As hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. For the SWE135E / SWE135E-3H, we selected Germany Rexroth for the hydraulic pump and swing motor and KYB for the Main Control Valve (MCV). Both highly reliable brands are known for their high efficiency and long-life components, designed specifically to meet the demands of hydraulic excavators.
HIGH WORKING RANGE The SWE135E / SWE135E-3H have exceptional digging forces - 100 kN (bucket) and 76 kN (arm) - easily rivaling all 13.5t excavator competitors on the market. And when it comes to its long-reach capacity, the SWE135E / SWE135E-3H's boom cylinder design provides a ground reach of over 8.2meters (8185 mm) and a digging reach that's over 8.3 meters (8330 mm) long - making this compact excavator the benchmark of its range.
READY FOR A VARIETY OF APPLICATIONS In the spirit of Sunward's motto - 'Innovation Leads to Value' - the design and engineering of the SWE135E / SWE135E-3H are focused on generating optimal value for the machine's owner while offering optimum versatility to the machine's operator.
The SWE135E / SWE135E-3H can be used in a large variety of working conditions and applications. And thanks to the 3 separate auxiliary lines (2 of them are equipped with a shut-off valve for easy and oil leakage-free installation of attachments), the 3 bucket working modes, and the 3 attachment work modes, an operator needs only a few minutes to fully appreciate the possibilities offered.
WELL-EQUIPPED FROM THE OUTSET This slightly Sunward SWE135E / SWE135E-3H compact excavator has it all from the day it leaves the factory:
- Safety valves for the boom & arm cylinder for safer operations
- Auto-shifting traveling motor for smooth operations to the operator
- TOPS, FOPS & ROPS cab
- Battery cut-off switch for safer operations and prolonged battery lifetime and power - which is especially appreciated in the cold weather of Scandinavian countries.
- Double Acting Hydraulic Circuit
- Factory-fitted Hydraulic Quick Hitch Lines
- Factory-fitted Hammer & Rotation Line
- Factory-fitted Case Drain Line
- Factory-fitted Dual proportional joysticks
- Factory-fitted Tiltrotator Configured Joystick Controls (tiltrotator of your choice)
- 3 LED work lights as standard: 1 on the front right side of the cab, and 2 on both sides of the boom
EASY TO MAINTAIN The SWE105F are as easy to maintain as it is to operate. To reduce maintenance time and cost, the covers on the side and the top provide direct access to the service points. With extremely easy access to the centralized grease fittings, we even added handrails to make it easier to get around the machine.
SAFE CAB The high strength SWE135E / SWE135E-3H cab meets no less than FOPS, TOPS, and ROPS requirements, which are standard and among the first features to ensure a safe and comfortable job in all application environments. Despite its compact size from the outside, the SWE135E / SWE135E-3H offers easy access to the roomy cab, welcoming operators of all sizes from everywhere in Europe. Thanks to the large windows and the well organized cab, everything is designed to keep operators comfortable and productive as well as safe.
BEST VALUE FOR MONEY Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE135E / SWE135E-3H's expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward's own genuine spare parts are economical as well - and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.

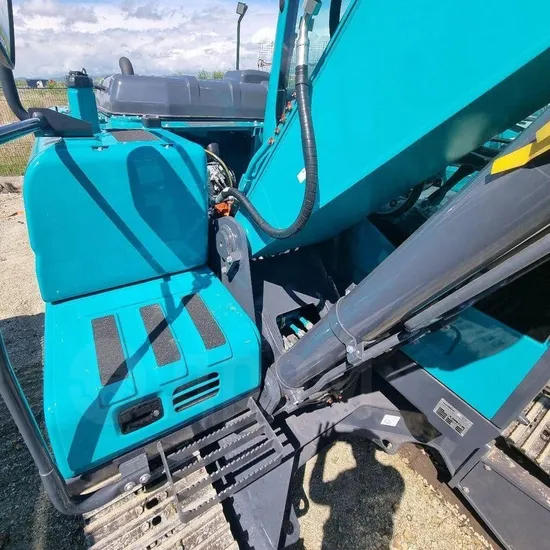

Detailed Photos
Except above listed photos for SWE135E / SWE135E-3H, other models with photos as below,
Our Advantages
Bigger diesel excavators or other brands for extreme working conditons available.
All hydraulic excavators supplied by us will be strictly selected against efficiency and costs, for your applications.
Some Features of another suggested brand, zoomlion excavators,
Reliable performance
The dedicated extension of the mines, the high -intensity four -wheeled area, the full protective track protection rail, and the large torque and long life walking reducer, strong and durable. Strengthening working devices, key areas use casting forging and multiple thick plate architectures. After heat treatment and ultrasonic inspection, it is strong and reliable.
High efficiency and energy saving
Zoomlio customized the imported Cononis large power engine with high -efficiency and reliable post -processing system with strong power, low fuel consumption, and low emissions to meet the national four emission standards.
Imported Kawasaki and Nabicheng Hydraulic control systems, with the Sino -Customized ESI electronics control system, to achieve the perfect match between power and hydraulic pressure, the response speed is faster, the fuel consumption is reduced by 10%, and the work efficiency is improved by 9%.
Convenient maintenance
The modular design meets the one -stop checkpoint and is more convenient to maintain; the use of long -term oil and hydraulic oil, double the replacement cycle, and the maintenance cost is lower.
Equipped with intelligent services, real -time monitoring of equipment status, and actively reminding maintenance information to achieve remote services and fault diagnosis.
Safe and comfortable
Equipped with high -intensity cabs, as well as comprehensively ensuring operational safety such as rear vision, side view camera, and non -slip plate.
Equipped with a 8 -inch large -screen display and a new human -machine interactive operating system, which is rich in functions, simple and easy to use, and improve work efficiency.
Specificaitons

DRIVELINE
Emission Rating	Tier 2
Engine Manufacturer	Cummin
Number Of Cylinders
Displacement, ltr (Inches³)	6.7(409)
Rated speed, rpm	2000
Engine Output - Net, kW (hp)	125(169)
Number Of Carrier Rollers - Each Side	2
Number Of Track Rollers - Each Side	8
Track Shoe Width, mm (inches)	600(24)
DIMENSIONS
Transport Length Mono Boom, mm (ft/in)	9650(31 ft 6 in )
Transport Height - Maximum, mm (ft/in)	3370 (11 ft 1 in)
Overall Undercarriage Width, mm (ft/in)	3390 (11 ft 1 in)
Track Length On Ground, mm (ft/in)	3840 (12 ft 7 in)
Overall Undercarriage Length, mm (ft/in)	4640 (15 ft 3 in)
Tailswing Radius, mm (ft/in)	3140 (10 ft 4 in)
Ground Clearance, mm (inches)	460 (18)
Width over fixed tracks, mm (ft/in)	3390 (11 ft 1 in)
Track Gauge, mm (ft/in)	2590 (8 ft 6 in)
Digging Reach - Mono Boom, mm (ft/in)	10910 (35 ft 10 in)
Ground Level Reach - Mono Boom, mm (ft/in)	10750 (35 ft 3 in)
Dig Height - Mono Boom, mm (ft/in)	10560 (34 ft 8 in)
Dump Height - Mono Boom, mm (ft/in)	7580 (24 ft 10 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)	7440 (24 ft 5 in)
Dig Depth - Mono Boom, mm (ft/in)	7610 (25 ft )
Standard Arm, mm (ft/in)	3610 (11 ft 10 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))	360(95)
Hydraulic Tank, ltr (gallons (US))
Number Of Batteries	2
Voltage, V	24
PERFORMANCE
Ground Bearing Pressure, kPa (PSI)	39.1 (5.66)
Swing Speed, rpm	12
Swing Torque, kNm (lbf / ft)	77.5 (57150)
Travel Speed - High, kph (mph)	3.5-5.4
Tractive Force, kN (lbf)	210(47220)
Arm Tearout, kN (lbf)	114 (25628)
Bucket Breakout, kN (lbf)	150(33722)
Gradeability, %	70
End lift - 7.5m Reach, kg (lbs)	6070 (13050)
Side lift - 7.5m Reach, kg (lbs)	3760 (8070)
Total Flow, lt/min (gallons (US) / min)	448 (118.4)
Bucket Pressure, bar (PSI)	343 (4975)
Boost Pressure, bar (PSI)	380 (5511)
WEIGHTS
Operating Weight, kg (lbs)	22000(48470)

More photo of application
Haul trucks / off-road trucks, DTH surface drill rigs, Tophammer surface drill rigs, dozers, loaders, crushers etc., all could be supplied according to your requirements.
Any more question, please feel free to contact us.

---
