The Best Price Small Size Waveguide Termination

Product Description

specifica

Model No*	WG Type EIA	Freq Range (GHz)	Working bandwidth	VSWR	Length L(mm)	Flange	Material
EF-3WLS1.07	WR2300	0.32-0.49	10%	≤1.07	300-600	FDP	Al
EF-4WLS1.07	WR2100	0.35-0.53	10%	≤1.07	250-550	FDP	Al
EF-5WLS1.07	WR1800	0.41-0.62	10%	≤1.07	250-500	FDP	Al
EF-6WLS1.07	WR1500	0.49-0.75	10%	≤1.07	200-400	FDP	Al
EF-8WLS1.07	WR1150	0.64-0.98	10%	≤1.07	170-350	FDP	Al
EF-9WLS1.07	WR975	0.75-1.15	10%	≤1.07	150-300	FDP	Al
EF-12WLS1.05	WR770	0.96-1.46	10%	≤1.05	120-250	FDP	Al
EF-14WLS1.05	WR650	1.13-1.73	10%	≤1.05	100-200	FDP	Al
EF-18WLS1.05	WR510	1.45-2.20	10%	≤1.05	70-150	FDP	Al
EF-22WLS1.05	WR430	1.72-2.61	10%	≤1.05	60-130	FDP	Al
EF-26WLS1.05	WR340	2.17-3.30	10%	≤1.05	50-100	FDP	Al
EF-32WLS1.05	WR284	2.60-3.95	10%	≤1.05	40-90	FDP	Al
EF-40WLS1.05	WR229	3.22-4.90	10%	≤1.05	40-80	FDP	Al
EF-48WLS1.05	WR187	3.94-5.99	10%	≤1.05	40-70	FDP	Al
EF-58WLS1.05	WR159	4.64-7.05	0.1	≤1.05	30-60	FDP	Al
EF-70WLS1.05	WR137	5.38-8.17	0.1	≤1.05	25-50	FDP	Cu
EF-84WLS1.05	WR112	6.57-9.99	0.1	≤1.05	20-40	FBP	Cu
EF-100WLS1.05	WR90	8.20-12.40	0.1	≤1.05	15-30	FBP	Cu
EF-120WLS1.05	WR75	9.84-15.0	0.1	≤1.05	15-30	FBP	Cu
EF-140WLS1.05	WR62	11.9-18.0	0.1	≤1.05	45585	FBP	Cu
EF-180WLS1.05	WR51	14.5-22.0	0.1	≤1.05	45585	FBP	Cu
EF-220WLS1.05	WR42	17.6-26.7	0.1	≤1.05	45583	FBP	Cu
EF-260WLS1.07	WR34	21.7-33.0	0.1	≤1.07	45583	FBP	Cu
EF-320WLS1.07	WR28	26.5-40.0	0.1	≤1.07	45519	FBP	Cu
EF-400WLS1.10	WR22	32.9-50.1	0.1	≤1.10	45488	FUGP	Cu
EF-500WLS1.10	WR19	39.2-59.6	0.1	≤1.10	45455	FUGP	Cu
EF-620WLS1.10	WR15	49.8-75.8	0.1	≤1.10	45455	FUGP	Cu
EF-740WLS1.15	WR12	60.5-91.9	0.1	≤1.15	45422	FUGP	Cu
EF-900WLS1.15	WR10	73.8-112	0.1	≤1.15	45422	FUGP	Cu

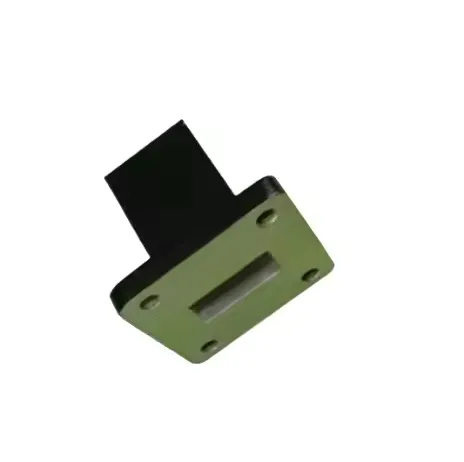

Product picture Packaging & Shipping
Company Profile Xi'an EFine Telecom Technology CO.,Ltd (WinFine Telecom hereinafter) is a leading microwave waveguide components, assemblies and antenna systems manufacturer in China. Established in 2011, EF Telecom is continually growing to meet customer's needs. Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs. Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements. Our standard delivery time is only half of the average western supplier's standard delivery time. Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components. We implement TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction. We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance and delivery. Manufacturing Technique
FAQ 1.Q: Are you a manufacturer or trading company?
A:Yes, we are manufacturer.Our company has 15 years of professional experience in the telecom field, which can design, manufacture a wide range of microwave waveguide components, coaxial components, antennas and other telecommunication components to global market.
2.Q: How to make an OEM order?
A: 1.We will manufacture these products based on the mechanical drawings you provided. Some minor alterations might occur during the process of production to ensure we can meet your electrical specs requirements. Alternatively, we may go for the first set as samples and see whether it meet your specification requirements. After communication, the buyer and the seller reach an agreement on product details, packaging, purchase quantity, unit price, delivery time and payment terms.
2.The buyer sends a formal PO (purchase order) or the seller sends a formal PI (proforma invoice) with detailed terms and conditions.
3.Q: How do you solve after-sales service issues?
A: After receiving the goods, if you have any dissatisfaction or other issues, please contact us ASAP, we will give you a fast response and reasonable solution.
4.Q: How long is your delivery time?
A:Usually 7-15 working days after receiving your 100% payment. For bulk orders: 15-35 working days after receiving the deposit.
5.Q: How do I get samples?
A: We need to receive your payment before we can send the samples to you. After the customer confirms the order, we will reduce the sample cost. However, if you are our regular customer, we can send the sample to you and then deduct it from your account in the next transaction.
6.Q: What are your payment terms?
A: Small batch orders or urgent orders, you can choose PayPal, Western Union, Escrow to facilitate buyers, 100% payment before shipment; for large orders: 30%/50% of T/T as deposit, the balance before shipment.
7.Q: How about the warranty?
A: We can provide 1 year warranty.

---
