Epoxy Coating Csp Corrugated Steel Metal Culvert Pipe Plates Customized Color Long Life

Product Description

Custom 2-10mm Thickness Q195 Material Galvanized Corrugated Steel Culvert Pipe
Product Description

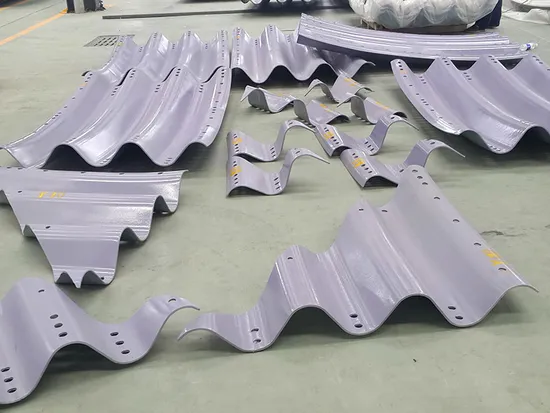

Galvanized Corrugated Steel Culvert Pipe
Galvanized corrugated steel culvert pipe, also called corrugated metal culvert pipe, refers to the metal pipe laying buried in the highway or railway culvert, which is made of corrugated metal plate roll or semicircle corrugated steel plate, widely used in highways, railways, bridges, tunnels, retaining walls, and a variety of mines and the retaining wall of roadway supporting the engineering of the culvert (tube).
Compared with reinforced concrete culvert, corrugated steel culvert pipe has the advantages of thin pipe sections, lightweight, easy transportation and storage, simple construction technology, quick assembly, short construction period, and so on.
When building a corrugated culvert, galvanized corrugated steel culvert pipe can be assembled into the culvert of any length according to the need. When necessary, the pipe section can also be removed to another place to build. In the areas which lack of sand and stone material or have low foundation-bearing capacity, the superiority of the corrugated steel culvert pipe is more significant.Convenient construction: the pictures shown bellow are the use of a sleeve or flange connection. The length of the corrugated steel culvert pipe can be customized. The construction needs only a small amount of manual operation. And the construction of the corrugated steel culvert pipe can be completed in a short time, which is fast and convenient. Even not so skilled workers can operate.Product Parameters

GALVANIZED CORRUGATED STEEL CULVERT PIPE
Product Name	Galvanized Corrugated Steel Culvert Pipe
Keywords	Corrugated Galvanized Steel Culvert Pipe
Material Grade	Q195,Q235,Q345,SS400,A36,A53,10#,20#,35#,45#,20g,40cr,20gr,16mn-45mn
Length	12m, 6m, 6.4m or Customized
Thickness	2 - 10 mm Customizable
Spacing Wave	150, 200, 300, 400mm
Type	Welding, Punching, Cutting
Shape	Extruded Culvert Pipe
Surface Treatment	Hot Dip Galvanized, Pre-galvanized
Tolerance	±5%
Diameter	500-14000mm or Customized
Standard	GB, ASTM, API, JIS
Application	Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe
Payment Terms	L/C ; T/T
The Table Parameters Are For Reference Only, Please Refer To The Actual Goods Received

Our Advantages
High-strength Corrosion Resistance
The corrugated design increases the strength and load-bearing capacity of the pipeline, allowing it to withstand greater pressure and load, and is suitable for various engineering environments. It has good corrosion resistance and can be used for a long time in humid and corrosive environments.Lightweight
Compared with traditional steel pipes, corrugated steel pipes are lighter in weight, easier to transport and install, and reduce the requirements for supporting structures.Flexibility
Corrugated steel pipes have a certain degree of flexibility and can adapt to terrain changes, reducing the requirements for foundations, and is suitable for complex terrain and geological conditions.Inspection Test & Thickness Test
We have raw material sampling inspection and tensile strength test.
And the compressing waves, curve shape and slotting are all strictly accorded with the standards.Long Service Life
The corrugated steel culvert pipe adopts hot-dip galvanized steel plates material, which has a service life of 80-100 years. When used in a particularly corrosive environment, the steel corrugated pipe with asphalt coating on the inner and outer surfaces can be used to extend the original service life by more than 20 years.FAQ
Q1: Where is your factory?
A1: Our factories are mostly located in Hebei, China.
Q2: What's your MOQ?
A2: Commonly our MOQ is one container, but different for some goods. Please contact us for details.
Q3: What is your sample policy?
A3: We can supply the sample if we have ready parts in stock, but the customers must pay the courier cost. All the sample costs will be refunded after you place the order.
Q4: Do you test all your goods before delivery?
A4: Yes, we test all our goods before delivery.
Q5: All costs will be clear?
A5: Our quotations are straightforward to understand. There won't be any extra cost.

---
