Factory Directly Supply High Performance 0.1-10n. M Static Torque Sensor

Product Description

Product Description

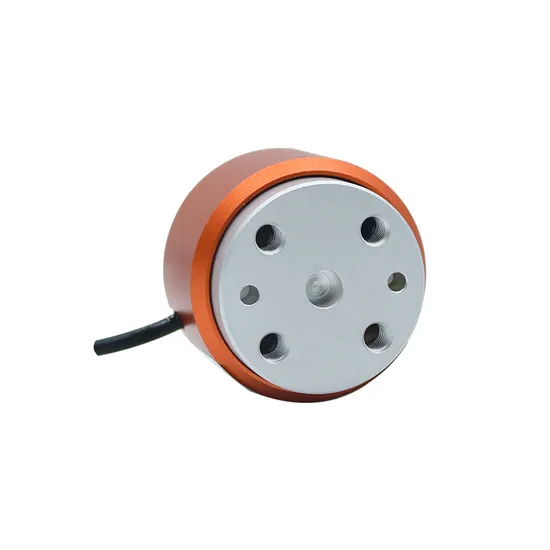

Factory directly supply high performance 0.1-10Nm static torque sensor
The static torque sensor is an instrument that converts the strain generated by the torsional torque into an electrical signal that is linearly related to it according to the principle of resistance strain.
FIBOS has mature manufacturing technology, complete varieties, wide range, high precision, and stable and reliable performance. Application of FIBOS FA602B static torque sensorThe application of the static torque sensor is mainly used in test systems such as testing machines and static torque detection. The static torque sensor converts the strain generated by the torque torque into an electrical signal that is in line with it according to the principle of resistance strain.
The static torque sensor is generally used to test the occasions where the torque changes slowly, and the sampling speed is generally lower than 50 times per second, such as testing the static load torque of a manual torque wrench or a transmission.

Specification

Parameters	Values
Capacity	0.1,0.2,0.5,1,2,3,5,10N.m
Rated output	1.5~10%mV/V
Zero Balance	±2%mV/V
Creep(30min)	≤0.05%F.S.
Non-linearity	≤0.1%F.S.
Hysteresis	≤0.05%F.S.
Repeatability	≤0.05%F.S.
Input Resistance	350±5Ω
Output Resistance	350±5Ω
Temp.effect on output	0.05%F.S./10 °C
Temp.effect on zero	0.05%F.S./10 °C
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5~15V
Maximum excitation	20V
Compensated Temp Range	-10~60 °C
Operating Temp Range	-20~80 °C
Safe Load Limit	120%F.S.
Breaking Load	150%F.S.
Cable size	3m
