Mini Dumper Power Barrow Hydraulic Transmission Truck Crawler Concrete Dumper

Product Description

Welcome to Trade Peak Construction Machinery
Concrete Power Buggy Mini Dumper Concrete Dumpers
Product DescriptionConcrete Power Buggy Mini Dumper Concrete Dumpers, Mix within the reach of a mini-dumper.

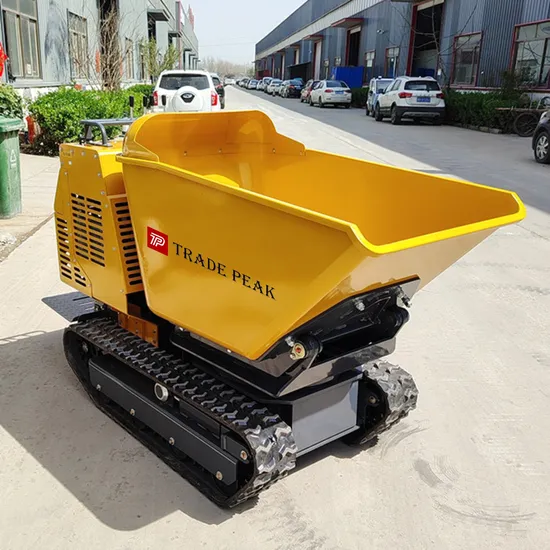

QTP1200 Concrete Power Bugggy Mini Dumper Designed for building sites, roads, and all those situations where it is necessary to mix small quantities of building materials and to transport them to the site.Tank/yield total capacity, of 500 liters. Available, with a one/two-way auxiliary hydraulic power take-off.
Specifications

Engine: Briggs & Stratton		Displacement: 420CC		Rate Power: 13.5hp/3600rpm		Max. Loading Capacity: 1200kgs		Chasiss Width: 900mm
Container size: 140x80x60cm		Body size: 206x90x104cm		Max. rotation angle: 260°		Rotation mode: hydraulic		Tipping Interval: 320mm
Track Width: 180mm		Track ground length: 100cm		Chassis ground clearance: 14cm		Box Capacity: 594kgs		Tipping Angle: 90 °

Detailed Photos
The engine and hydraulic pump are directly connected to reduce the resistance of power transmission, allowing the engine to run at full load without running or operating powerlessness.
The connection between the engine and the hydraulic pump is protected by a cast iron cylinder sleeve, which has strong flexibility, high density, is not easy to deform, is wear-resistant, and has the advantages of extending service life
The oil cylinder uses: Taiwan brand oil cylinder, the gaskets and seals in the oil cylinder are cold-treated to reduce the gap between the seals and reduce the occurrence of oil leakage.
The travel motor uses two Eaton motors imported from the United States, and the rotary motor uses an Italian imported motor
The most important sprocket in the slewing support is made of forged steel, which has extremely high durability and the teeth are not easily damaged, greatly increasing the service life of the machine.
The thickness of the bracket connecting the chassis and the lower load-bearing base of the cargo box is 12mm

Product ParametersTrack Dumpers & BuggiesTrack Buggies and Dumpers for moving, transporting, and dumping concrete and other construction materialsTrack Buggies and Dumpers, also known as power buggies or concrete buggy tracks, can be used to place concrete in smaller areas that cannot be accessed by concrete trucks. Concrete buggies can also be used for the transfer of Mortar, and Debris. Diamond Tool Store carries some of the most rugged and tough Concrete Buggies that provide durable and sturdy transportation. We offer a variety of options from pneumatic wheels to Steel Wheels to provide versatility for all of your transportation needs.
There are four shock-absorbing blocks between the engine base plate and the engine, and they are made of 5mm thick steel plates.
The drive wheel is made of high-hardenability manganese alloy cast steel material, and the entire tooth surface is quenched to make the surface hardened layer uniform and the grains refined, thus providing good wear resistance and strength. The teeth on the upper side are not easy to break.
Installation Instructions
Our AdvantagesAt Trade Peak, we are dedicated to providing top-notch customer service, competitive pricing, swift delivery, and a wide range of cutting-edge products. Our goal is your satisfaction.
Our products have reached six continents and nearly thirty countries, with several series holding CE certificates from TUV. This has enabled us to establish strong relationships with major supermarkets worldwide.
Packaging & Shipping
At TRADE PEAK, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
With the top quality and best after-service, the products have been distributed to Six continents and almost Thirty countries. Several products series have passed CE certificates by TUV , that is why we keep good relationship with some large supermarkets which is all over the world.
Good knowledge and rich experience on different market can meet special requirements.
Strong professional technical team and advanced technology ensures to produce the high, stable quality specialized dumper.
Provide all the details of this motorcycle to you during the mass production. your complaints and requirements are highly respects.
Special cost control system ensure to provide the most favorable price.
OEM service is welcome.
Our aim: ensure the satisfaction of the customers.FAQ1.What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.2. Is it only a dumper?
No. It is a multifunction Machine for short-distance transport. It has optional accessories for moving different materials.
3.Which place suits for job?
It can suit for Agriculture (Farm, Plantation, Fishing), Garden (Lawn Care, Green Hose), Landscaping, Civil Construction, DIY Job, Small Mining, Underground, Workshop, and places which should do lots of short distance delivery. 4.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website. 5.Can you OEM or ODM?
Yes, we have strong developing team. The products can be made according to your request. 6.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.7.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
8.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:
30% deposit in advance, 70% balance against the copy of B/L.
9. How about your packing?
According your requirement, half assembled or assembled. One machine in one iron crate.
10.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction
11.How does your factory do regarding control?
Professional making process. Our assemble workers have many years skill for machine assemble. All of our products have the CE certification.
12. How about your services?
Good service. For any inquiry and other question, we will deal in 48 hours for you.

---
