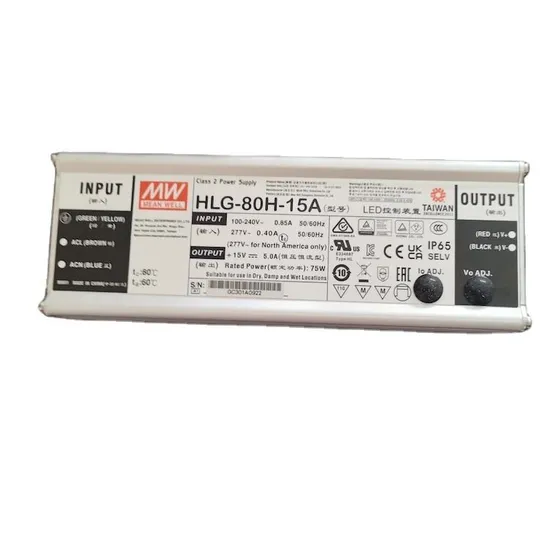

Mean Well Hlg-80h-15A 80W Class 2 Constant Current + Constant Voltage Mode LED Driver

Product Description

Product Description 80 WATT Class 2 POWER SUPPLY HLG-80H-15A IP65 Waterproof Constant current + Constant voltage mode driver

Features:
1.Constant voltage +constant current mode output.
2.Metal housing with class I design.
3.Built-in active PFC function.
4.Class 2 power unit.
5.IP65 rating for indoor or outdoor installations.
6.Function options:output adjustable via potaentiometer.
7.Typical lifetime>62000 hours.
8.7 years warranty.

Applications: Led street lighting, High bay lighting , Parking space lighting, LED fishing lamp, LED greenhouse lighting...

Description:

HLG-80H series is a 80w AC/DC LED DRIVER featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90-305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40~ +80 Degree Celsius case temperature under free air convection. The design of metal housing and IP65 Ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Model Encoding:

Model No.	HLG-80H-15A
DC Voltage	15V
Rated Current	5A
Voltage ADJ. RANGE	13.5-17V
Rated Power	100VAC-305VAV
EFFICIENCY (Typ.)	93%
Current ADJ. RANGE	3-5A
Dimensions and weight	195.6X61.5X38.8MM, 0.86KG
Package	16PCS/CARTON, WEIGHT 14.4KG.

Dimensions & details



Application


Export market : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Packaging & Shipping

---
