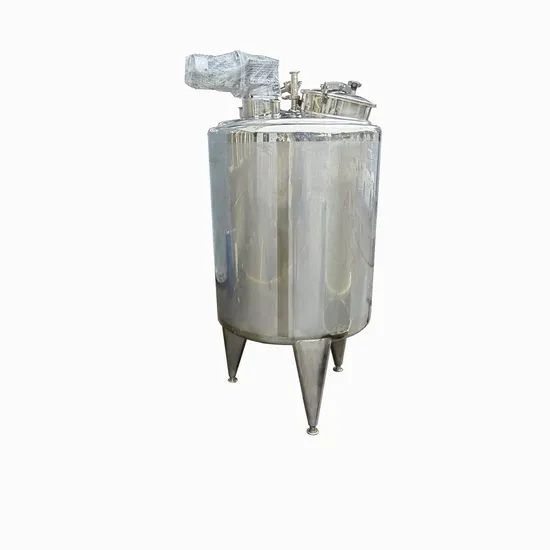

1500L Stainless Steel Food Grade Liquid Mixing Tank with Stirrer (fixed mixing speed or adjustable mixing speed)

Product Description

1500L Stainless Steel Food Grade Liquid Mixing Tank With Stirrer (fixed mixing speed or adjustable mixing speed)
Summary:
This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable storage equipment for them.You can have it made by SUS304, SUS316L stainless steel or Q235B carbon steel. It is reasonably designed, produced by advanced technology and confirm to GMP requirement.
The inner surface of the tank can be mirror polished and the roughness can meet as high as Ra <=0.8 um. The outer surface is polished as follows: the cover and bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.
Features:
Material: SUS304 or S.S.316L
Mixing type: anchor type, frame type or paddle type
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing equipment: Mechanical sealing
Heating way: steam heating, electrical heating or heat conduct oil.
Volume: can be made as per customer requirements
Measure: can be made as per customer requirements
Technical Parameter:

	FYG100	FYG200	FYG500	FYG1000	FYG1500
Volume L	100	200	500	1000	1500
Diameter mm	500	600	800	1000	1200
Tank Pressure MPa	0.25-0.5
Jacket Pressure MPa	0.30
Motor Power kw	1.1	1.5	2.2	4.0	4.0
Agitation Speed r/min	85
Tank Type	First Grade Pressure Tank

	FYG2000	FYG2500	FYG3000	FYG4000	FYG5000
Volume L	2000	2500	3000	4000	5000
Diameter mm	1200	1400	1400	1500	1600
Tank Pressure MPa	0.25-0.5
Jacket Pressure MPa	0.30
Motor Power kw	4.0	5.5	5.5	5.5	7.5
Agitation Speed r/min	85
Tank Type	First Grade Pressure Tank

---
