Basic Info.
Machining Process
Assembly
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000, CE
Product Name
High Frequency Concrete Vibrator
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
45.00cm * 48.00cm * 25.00cm
Package Gross Weight
6.350kg
Product Description

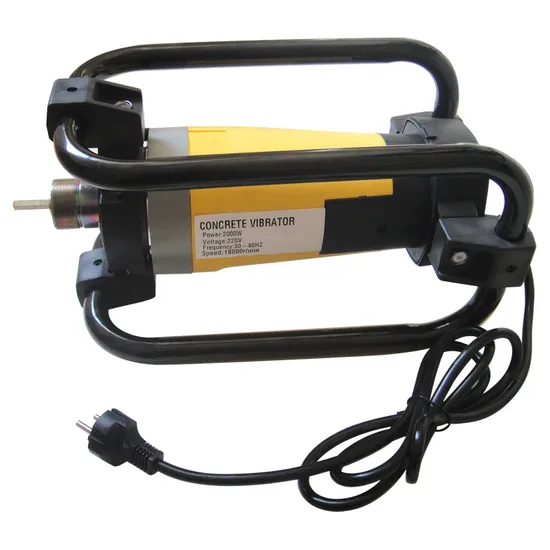

2000W High Frequency Concrete Vibrator (ZID-UL-200R)
Product Uses
High frequency concrete vibrator is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket,crowded reinforcing stell bar net coagulation dirt wall and major and medium small architectural engineering. It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.
Product Description
1.The ZID Series High frequency concrete vibrator is an immersion type vibrator. During operation,the vibrating poker that is attached to the vibrator has to be immersed into the concrete .The poker has an eccentric vibrating element inside it .
2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration . Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube .It is spun as much as 12000 times per minute,which makes it easy to cause resonance with the poured concrete .
3. The lightweight vibrator only weights to 5.2kgs to 6kgs,giving ease of operation .It is one of the most widely used products,know for its low noise,energy efficiency, reliable functioning,high safety,and good vibrating performance.
Product Specification
Backpack Concrete Vibrator |
Model | ZIN-UL-200H |
Power | 2000 W |
Voltage | 220-230 V |
Speed | 18000 RPM |
Weight | 6.2 KG |
Packing size | 45*48*25 cm/2pcs |
Type | High speed |
Match Vibrator shaft :
Item | Concrete vibrator shaft |
Model | ¢(mm) | ZX35 | ZX-38 | ZX-45 | ZX-50 | ZX-60 | ZX-70 |
Diameter of head | ¢(mm) | 35 | 38 | 45 | 50 | 50 | 70 |
Length of head | L (mm) | 380 | 420 | 420 | 480 | 410 | 450 |
Vibrating Frequency | (HZ) | 183 | 185 | 185 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.91 | 1 | 1.2 | 1.15 | 1.15 | 1.35 |
Dia of flexiable hose | D(mm) | 30 | 30 | 32 | 36 | 36 | 36 |
Diaof flexiable shaft | D(mm) | 10 | 10 | 10 | 13 | 13 | 13 |
Weight (6mtr) | (kg) | 14 | 15 | 16 | 20 | 21 | 24 |
packing size | CM | 75*75*5.5 |
FACTORY
| | | |
Excavator | Surface Finishing Screed | Concrete Vibrator | Power Trowel |
|
|
|
|
Remote Control Trowel | Concrete Mixer | Plate Compactor | Compactor Machine |
|
|
|
|
Drywall Sander | Steel Bar Cutter | Vibratory Roller | Steel Bar Bender |
FAQ
1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge. |
2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required. |
3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
|
>>
