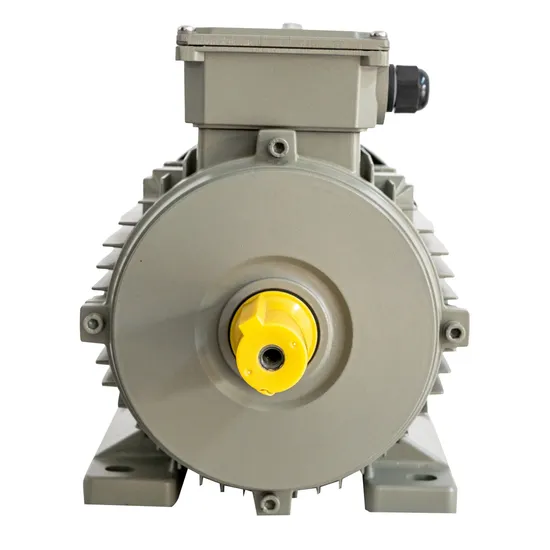

Electromagnetic Brake AC Electric Motor with Advanced Safety Features YEJ-132M-4 7.5kw

Product Description

Electromagnetic brake motorsYEJ series electromagnetic brake three-phase asynchronous motors are suitable for use as main shaft drives and auxiliary drives in various machinery that requires quick stop, accurate positioning, reciprocating operation, frequent starting, and prevention of sliding. Such as lifting machinery, transportation machinery, packaging machinery, printing machinery, food machinery, construction machinery, woodworking machinery, reduction machinery, metallurgical machinery, forging machinery, etc.Detailed Photos
Product Parameters

Frame size	poles	Mounting dimensions(mm)										Overall dimensions(mm)						braking torque
																		N.m
		A	B	C	D	E	F	G	H	K	DH	AB	AC	HD	L	BB	AA
63	2,4	100	80	40	11	23	4	8.5	63	7	M4*10	120	118	168	258			4
71	2,4	112	90	45	14	30	5	11	71	7	M5*13	136	139	190	300	107	24	4
80	2,4,6,8	125	100	50	19	40	6	15.5	80	10	M6*16	165	157	225	352	131	33	8
90S	2,4,6,8	140	100	56	24	50	8	20	90	10	M8*20	180	176	248	373	140	36	15
90L	2,4,6,8	140	125	56	24	50	8	20	90	10	M8*20	180	176	248	397	165	36	15
100L	2,4,6,8	160	140	63	28	60	8	24	100	12	M10*20	198	196	270	422	175	38	30
112M	2,4,6,8	190	140	70	28	60	8	24	112	12	M10*25	226	220	300	472	170	45	60
132S	2,4,6,8	216	140	89	38	80	10	33	132	12	M12*30	262	258	340	546	178	50	80
132M	2,4,6,8	216	178	89	38	80	10	33	132	12	M12*30	262	258	340	580	216	50	80
160M	2,4,6,8	254	210	108	42	110	12	37	160	15	M16*36	315	311	414	716	256	65	150
160L	2,4,6,8	254	254	108	42	110	12	37	160	15	M16*36	315	311	414	760	300	65	150
180M	2,4,6,8	279	241	121	48	110	14	42.5	180	15	M16*36	350	352	450	787	300	70	260
180L	2,4,6,8	279	279	121	48	110	14	42.5	180	15	M16*36	350	352	450	825	340	70	260
200L	2,4,6,8	318	305	133	55	110	16	49	200	19	M20*42	380	394	508	860	355	65	400
225S	4,6,8	356	286	149	60	140	18	53	225	19	M20*40	430	442	555	913	360	75	600
225M	2	356	311	149	55	110	16	49	225	19	M20*40	430	442	555	908	385	75	600
	4,6,8	356	311	149	60	140	18	53	225	19	M20*40	430	442	555	938	385	75	600

Applications
Suitable for construction machinery, mining equipment, large agricultural equipment fans, pumps, compressors and other industrial equipment Our Service
Company Profile

Test Center

Our new laboratory has a strong experimental capacity, including three-phase AC asynchronous motor, variable frequency adjustment motor, AC synchronous motor, single-phase asynchronous motor. Power range :0.25-500KW, frequency :0-500Hz. Can test all motor performance items, high precision and simple control. Exhibition

Certifications
FAQ
Q Are you a factory or trading company?A We are manufacturer located in FuZhou,Fujian,China Q Do we make special custom motors?A Yes sure Q What is your delivery time?A Normally, we can deliver the goods within one month. If we need to expedite the delivery, we can deliver the goods within 7-15 days Q What's our minimum order quantity?A Minimum order for 1 set Q How long is our shelf life?A 12 months Q Can I get a lower price if I order large quantities?A Yes, cheaper prices with more bigger quantity orders. Q How can you guarantee the production quality ?A We checked strictly before sending, will produce free of charge if it is quality problem from our side

---
