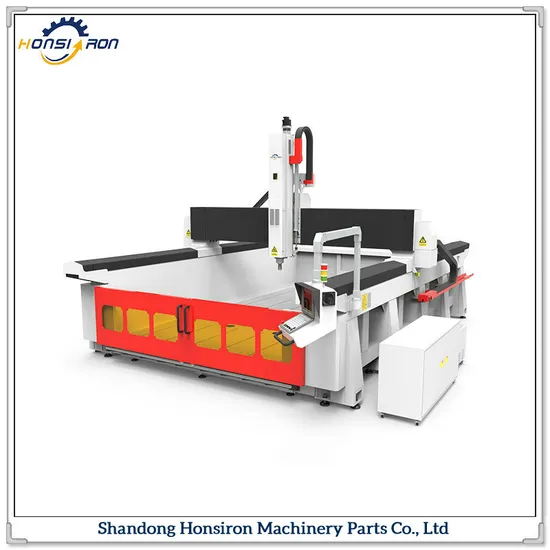

3 Axis CNC Milling Machine Tools Vertical with Tool Magazine Milling Machine

US$25,000.00-38,000.00 1 set (MOQ)

Basic Info.

Model NO.
SF3050
Condition
New, New
Certification
ISO, CE, CE, ISO 9001
CNC or Not
CNC
Voltage
380V
Movement Method
Contour Control
Control Method
Closed-Loop Control
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
After-Sales Service
Engineers Installation and Training Overseas
Application
Aluminum, Wood, Foam, Composite
Process Usage
Engraving, Milling, Trimming, Cutting
Numerical Control
CNC
Working Area
3000X5000X1200mm
Control System
Taiwanese Syntec Controller
Drive System
Imported Servo Drive System
Max Cutter Clamp Diameter
32mm
Type
Gantry Movable
Working Table
Steel Table
Max Idling Speed
Xy:60m/Min C:20m/Min
Positioning Accuracy
0.03 mm
Volatage
380V
Weight
2000kg
Max.Move Speed
45000mm/Min
Max.Process Speed
25000mm/Min
Transport Package
Standard Export Tray
Specification
3 axis cnc machine
Trademark
HONSIRON
Origin
China
HS Code
84659900
Production Capacity
200 Set/ Month

Packaging & Delivery

Package Size
200.00cm * 300.00cm * 180.00cm
Package Gross Weight
1800.000kg

Product Description

3 axis Cnc Milling Machine Tools vertical with tool magazine milling machine
It is suitable for the non-metal mold processing industry, and can be used for the precision production of various casting wood molds and EPS foam lost foam for various automobiles, ships, aviation, trains, etc. It can also be used for the production of automotive interior decoration and exhibition decoration materials.
Advantages of the Machine
1.The original triangular balance rail structure of the beam, with the Z-axis balance auxiliary device, ensures the rapid and stable processing of multiple curved surfaces.
2.Using Taiwan's new generation integrated operating system, it is convenient to operate, powerful, and has online simulation and online monitoring functions to ensure safe and efficient processing
3.Automatic oil circuit lubrication system makes maintenance and maintenance more convenient.
4.Using high-power servo drive system, with top accessories such as BT40 mechanical spindle and Italian imported spindle, the equipment has the characteristics of stable performance and long-lasting durability.
5.Possess functions such as continuous engraving at breakpoints, power outage recovery, and processing time prediction
6.Extremely humanized design, combined with ergonomic design of the height of the operation panel, modular design, meticulous and considerate, think what you think.
Product Description

Product Parameters
Model SF3050
Effective Working Stroke X:3000mm(other size available)
Y:5000mm(other size available)
Z:1000mm(other size available)
Machine Structure Overhead bridge gantry structure,heavy duty bed
Transmission Type All Axes High precision Taiwan ball screw
Drive System Imported Servo drive system
Control System Taiwanese Syntec controller
Spindle Power/Speed Direct drive type mechanical spindle with 5.5kw servo motor,Max.Spindle speed 12000rpm/m
Max Cutter Clamp Diameter 32mm
Max.Move speed 45000mm/min
Max.Process speed 25000mm/min
Total Weight According to the model
Command G-code,F/S command
Working Table Steel Table
Voltage AC 380V/50Hz

1.Automatic oil circuit lubrication system makes maintenance and maintenance more convenient.durability.d u r a b ilit yd u rdur a b ilit y
2.Possess functions such as continuous engraving at breakpoints,power outage recovery,and processing time prediction.
3.Extremely humanized design,com bined with ergonomic design of the height of the operation panel, modular design,meticulous and considerate,think what you think.
4.Using high-power servo drive system with topaccessories such as BT40 mechanical spindle and ltalian imported spindle,the equipment has the characteristics of stable performance and long-lasting durability
Company Profile
Shandong Honsiron Machinery Parts Co.,Ltd specialized in designing developing and producing various CNC machine and gantry machining centers. All the products have been approved by ISO9001:2000 and CE, we achieve ERP strategy and have independent right to export and import.
Manufacturing base in Qihe Economic Development Zone of Shandong Province,which with 13000 square meter modern plant, have over 200 workers and 20 professional technician and 15 after-sell service professional stuff.
More than 20 years machining experience has his own Professional R&D team,more than 20 engineers could design and produce 5 axis CNC machine,RV composite panels processing center,big mold CNC center and other high-end custom CNC equipment.
company advantage:
1.Professional R&D team: own kinds professional engineers, could design and produce 5 axis cnc machine, RV composite panels processing center, big mold cnc center and other high-end custom equipment.
2.Powerful machining capabilities:We own USA HASS Vertical Machining Center, USA HASS Horizontal Machining Center, Taiwan AWEA Gantry Five-Face Machining Center, kinds of boring machine and milling machine. More than 20 years machining experience to ensure the quality and precision of all mechanical spare parts;
3.Advanced testing equipment: We import UK RENISHAW brand laser interferometer / USA leader brand coordinate measuring machine / UK RENISHAW brand ballbar system, own Laser autocollimator / Optical edge finder Dial gauge, Dial indicator / square box / Marble square box and do insulation resistance text / ground resistance test / pressure test, to make sure all machine with the perfect performance before delivery.
4.24 hours online after-service and processional after-service team, to answer customer's question timely.
Shandong Honsiron Machinery Parts Co., Ltd has full-process machinery manufacturing capabilities, equipped with several American Haas CNC machining centers, Taiwan-made Asian CNC five-face milling, eight-axis welding robots, sandblasting machines, sheet metal production lines, plastic spraying production lines, and stress-relieving tempering furnaces. Advanced productionequipment, Renishaw laser interferometer, ballbar. Leighton coordinate, Easylaser laser calibrator and other precision testing equipment.
Certifications
FAQ
1. The first use of this machine, it is easy to operate? How about the training and installation?
---We could send the engineer to your factory for training and installation, and give you the technology support all lifetime.
2. If the machine has any problem after I ordered it, what could I do?
---Free parts send to you during the machine warranty period if the machine has any problem.
---If you need an engineer's support, we can fly to your company also.
3. Payment
T/T,L/C
4. You are a factory or trading company?
---We are a factory with the trading company, we not only can control the machine's quality by ourselves, but also we can provide better after-sales service by our engineers and technicians, this is our biggest advantage.
More info about the Wood engraving CNC machine 3-axis CNC milling machine 3050 wood foam engraving machine price,kindly to send us offer ,we will reply you ASSP
