Heidenhain Encoder and Cable Observation Panoramic Passenger Elevator Lift for Commercial Building

Product Description

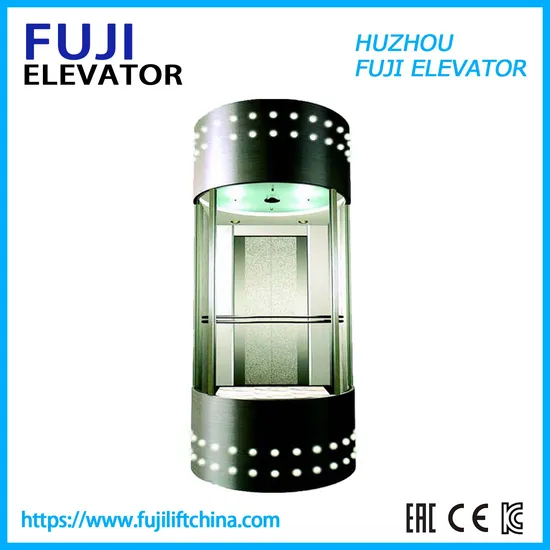

Sightseeing Elevator
A vertical elevator powered by a motor, equipped with a box-like pod, used in multistory buildings to transport people or goods. One or several sides of the shaft wall and car wall are transparent materials, passengers in the elevator ride, can see the car outside the scene.
The shaft and car wall have at least one side transparent, passengers can see the car outside the scene of the elevator. It is mainly installed in hotels, shopping malls and high-rise office buildings, with transparent materials on one or several sides of the well wall and the same side of the car wall. Passengers can watch the scene outside the car while riding in the elevator.
At present, there is no need to dig bottom pit and self-built screw sightseeing elevator in the market. The design is simple and beautiful. This kind of elevator has no special requirements on civil construction.

Loading capacity	Rated speed	Door open type	Door opening size(W x H)mm	Car size (Ax B) mm	Hoist way size(AH x BH) mm	Machine room size
						PIT	OH	(W x D x H)mm
450kg	1.0/1.5 /1.75	Center	800x2100	1400x850	2000x1550	1500/1600	4500	2500x3200x2500
630kg	1.0/1.5 /1.75	Center	800x2100	1400x1100	2000x1750	1500/1600	4500	2500x3600x2500
800kg	1.0/1.5 /1.75	Center	800x2100	1400x1350	2000x2000	1500/1600	4500	2500x3800x2600
1000kg	1.0/1.5 /1.75	Center	900x2100	1600x1400	2200x2150	1500/1600	4500	3000x4000x2600
1250kg	1.0/1.5 /1.75	Center	1100x2100	2000x1400	2600x2150	1500/1600	4500/4700	4000x4500x3000
1350kg	1.0/1.5 /1.75	Center	1100x2100	2000x1500	2600x2250	1500/1600	4500/4700	4000x4500x3000
1600kg	1.0/1.5 /1.75	Center	1100x2100	2000x1750	2600x2500	1500/1600	4500/4700	4000x4500x3000

Super enjoyment of mobile scene
Fine and exquisite observation elevator enhances building grade. It highlights the whole building.
FUJI observation elevator is a mobile scene.It has fine and exquisite visual aesthetics,perfect and comfortable travel.It applies modern new material and new fully computerized,vector type variable frequency speed regulation(VVVF)control technology.It combines with data network system,modular structure,the latest machining craft&technology.
Standard Functions

No.	Description name	Description	No.	Description name	Description
1	Static electricity protection	Eliminate static electricity raised from running of steps.	11	Over-load protection	Protection against risk of motor continually over-load.
2	Emergency stop button	Push the emergency stop button to shop the escalator/moving walk against emergency raise.	12	Step sagging protection	Protection against risk of steps being breakage and sagging.
3	Skirting protection	Protection against risk of foreign bodies being jammed into clearance between steps and skirting.	13	Broken step chain protection	Protection against risk of steps being breakage or under elongation.
4	Handrail entry safety protection	Protection against risk of foreign bodies being jammed into handrail entry.	14	Comb teeth safety protection	Protection against risk of foreign bodies being trapped at the point where the step enter the comb.
5	Main drive chains safety protection	Protection against risk of drive chains being breakage or undue elongation.	15	Handrail speed and broken handrail monitor	It detects the handrail speed and monitors the broken handrail.
6	Over-speed protection	Protection against risk of speed being over 20% of rated speed.	16	Skirting anti-clamp device	It sets protection brush in the skirting on both sides of the step.
7	Under-speed protection	Protection against risk of speed less than over 80% of rated speed.	17	Step missing detection	It detects the step missing in the stairway.
8	Un-intentional reversal protection	Protection against risk of unintentional reversal protection.	18	The brake opens the monitor switch	It monitors whether the brake opens or not in during the escalator running.
9	Floor-plate monitor switch	When the pit cover plate opens,it cuts off safety circuit and stops the escalator safety switch.	19	Handwheel and handwheel protection cover open safety	During the use of handwheel,when open the handwheel and the handwheel protection cover,the safety switch will cut the safety circuit against escalator running.
10	Short circuit protection	Protection against risk of short circuit.	20	Lack of phase,error phase protection	Protection against risk of phase failure.

The perfect and comfortable life
FUJI passenger elevator can offer you a pleasant ambience,special inverter system control the running position,upgrading the comfort feeling all-sided.Low noise,easy installation,accomplish you perfect living condition.Not only reduce the cost of designing and building on machine room,also make best use of yourbuiliding room.Small occupying space.No hoistway,safe and durable elevator is provided for you by FUJI.
Traction Machine
About us
Huzhou fuji elevator company adheres to the advanced international elevator management mode and innovative fruits in technical field.It actively introduces the first-class elevator manufacture equipment.It establishes the perfect and superior product system.It takes the management ideas of "since,creditable,promise-keeping,cooperation and double-win".it is engaged in sci-tech innovation.
It owns multiple original core technologies.At present,the products cover passenger elevator(small machine room,traction type villa elevator),freight elevator.automobile elevator,escalator,moving walk series etc.According to the user's requirements, it executes the market operation mode which integrates the manufacture,sales,installation,repair and maintenance into one.It design and produces different kinds of plural elevators as per the user's actual.

---
