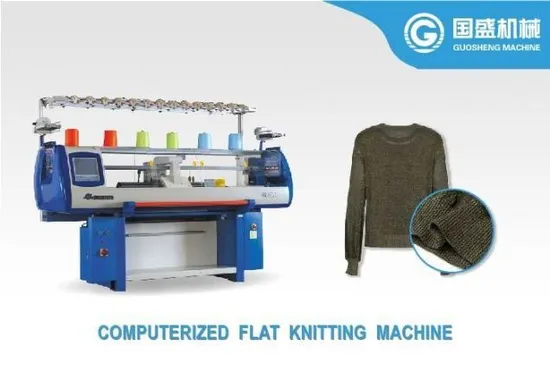

Blue Computerized Flat Knitting Machine for Raschel Blankets with CE ISO Certified

Product Description

Discover the revolutionary GSJX1-80-a monumental achievement in the knitting industry that shatters norms with its state-of-the-art technology and unparalleled performance!
Embark on an unmatched journey with the ultimate knitting companion, meticulously crafted to elevate your knitting endeavors to extraordinary levels!
Benefit from the profound expertise of our seasoned technicians, dedicated to providing superior knitting machines and exceptional customer service.
For over three decades, Guosheng has been at the forefront of the industry, driven by relentless innovation and an unwavering commitment to unparalleled service quality.
As a globally acclaimed manufacturer of knitting machines, our mission remains steadfast: to elevate industry performance standards to new heights.
We collaborate closely with knitters to contribute significantly to the standardization and advancement of the
world's most sophisticated knitting machines.
Why Choose Our Cutting-Edge Knitting Machines?
Purchase now and enjoy complimentary training in machine operation and pattern design, meticulously crafted for your utmost convenience!
Guosheng's service philosophy epitomizes mature and attentive service, offering free, comprehensive training in operation and
pattern-designing instructions for all valued customers, ensuring you maximize the benefits of your machine.

SPECIFICATIONS FOR FLAT KNITTING MACHINE
MODEL	GSJX-1-80
GAUGE	14G
KNITTING SYSTEM	SINGLE SYSTEM SINGLE CARRIAGE
KNITTING WIDTH	80INCH
KNITTING SPEED	1.2m/s MAX.1.2M/SEC
KNITTING FUNCTION	TRANFER,TUCK,MISS,JACQUARD,INTARSIA,HIDE OR APPARENT SHAPING.
STITCH DENSITY	STITCH SYSTEM CONTROLLED BY STEPPING MOTOR,32 SECTION STITCH SELECTABLE,ADJUSTABLE SCOPE SUPPORTED BY SUBDIVISION TECHNOLOGY:0-650
RACKING	CONTROLLED BY AC SERVO MOTOR,RACKING WITHIN 2 INCHES AND WITH FINE ADJUSTIING FUNCTION.
DRIVE SYSTEM	SYNCHRONOUS BELT DRIVE,AC SERVO SYSTEM
NEEDLE SELECTION	CONTROLLED BY COMPUTER,ELECTRIC MAGNET NEEDLE CHOOSE SYSTEM WITH HIGH EFFICIENCY.
YARN CARRIER	1x8YARN CARRIERS ON EACH SIDE OF 4 GUIDE RAILS,SHIFTABLE ON ANY NEEDLE POSITION
TAKE DOWN ROLLER	PROGRAMMED INSTRUCTION CONTROLLED BY STEPPING MOTOR, 32 SECTION LEVELS SELECTION ADJUSTABLE AREA:0-100
PROTECTION SYSTEM	THE MACHINE WILL AUTOMATICALLY ALARM IF YARN BREAKING, FLOAT YARN,REWIND,END OF KNITTING,FAIL OF RACKING,NEEDLE BREAKAGE AND ERROR PROGRAMMING OCCUR ECT.
CONTROL SYSTEM	1,ADOPT LCD SCREEN,INPUT DEVICE:USB,SYSTEM MEMORY 256MB,A GREAT AMOUNT OF DESIGN FILES CAN BE STORED.2,MONITORING MENU,EACH KIND OF OPERATING PARAMETER,CAN BE SHOWN,AND THEY CAN BE ADJUSTED AT ANY TIME WHEN THE MACHINE IS RUNNING.3,DESIGN SYSTEM IS VISUAL AND EASY TO UNDERSTAND AND UPGRAD.4,MULTI LANGUAGE VERSION,THERE ARE CHINESE,ENGLISH ETC.
POWER	220V ,SINGLE-PHASE,HAVE MEMORIZING FUNCTION AT THE POWER-OFF MOMENT

This high-quality, highly efficient knitting marvel is an indispensable asset for every serious knitter.
1) Advanced cam structure optimized via cutting-edge motor technology, dramatically enhancing needle transfer speed and efficiency.
2) Small carriage equipped with a quick return mechanism, significantly boosting productivity.
3) Enhanced fabric flatness through efficient collaboration with the yarn storage system, guaranteeing superior outcomes.
4) Simple needle plate construction utilizing milling flute technology for high efficiency, post heat treatment.
1. Carriage
High-speed rotating carriage servo,
featuring a 5.2-inch head that is 40mm
more compact than previous models, enhancing maneuverability.
Experience heightened production efficiency during multi-color jacquard operations,
ensuring the knitting process is seamless and highly productive.
2. Yarn Transportation Device
Our advanced active yarn transportation device
effectively minimizes resistance,
especially during yarn transport. Ideal for
yarns with low elasticity or high brittleness,
including cashmere and rabbit cashmere,
guaranteeing uniform fabric organization
and superior weaving efficiency.
making the weaving process remarkably smooth and efficient.
3. Oil-Adding Device
The automatic oiling system allows for precise interval and duration settings, preventing maintenance issues due to inconsistent manual oiling and significantly extending
the machine's service life.
ensuring a much longer lifespan for your knitting machine.
4. Yarn Feeder
Equipped with 16 yarn feeders, the machine automatically adjusts positions based on knitting width,
and finely tunes stopping positions according to head speed for optimal performance.
It provides rapid response and precise positioning, ensuring flawless results.
We treat each product with the utmost care,
Utilizing vacuum packaging to protect against moisture and rust, ensuring product safety during delivery.
Additionally, we offer customizable packing solutions that facilitate loading, unloading, and storage,
saving you valuable time on checking and delivery.
