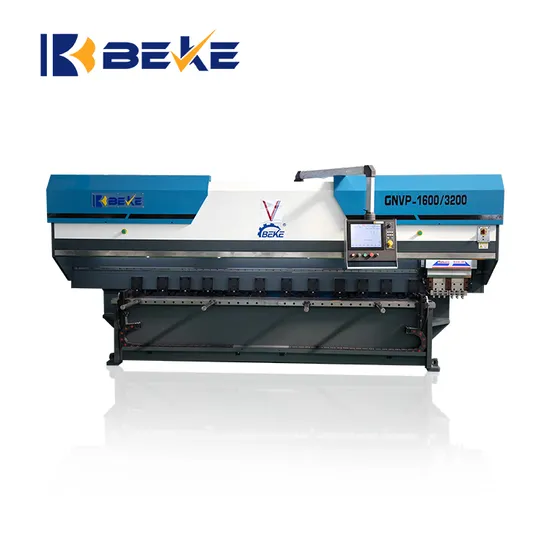

CNC Vertical Slotting V Stainless steel Sheet Slotting Groove Machine

US$30,500.00
1-2 set
US$29,900.00
3+ set

Basic Info.

Model NO.
grooving machine
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Model
Gnvp 1600X3200
CNC System
Japan Abel
Hydraulic Control System
Taiwan Yuken
Servo Motor and Driver
Japan Mitsubishi
Oil Cylinder Sealing Element
Japan Nok
Single/Double Pole Air Switch
Korea Ls
White Steel Knife
Yishengbai
Linear Guide Rail
Taiwan Hiwin
Transport Package
Container Directly
Specification
6350*2300*1700mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month

Product Description

Product Description

Product Parameters
Model GNVP-1600X3200
Machining Capacity Plate Material Stainless steel, iron plate, copper, ect.
Length 3200mm
Width 8-1600mm
Thickness 0mm-8mm(Sheet flateness less than 3mm)
Minimum dege White steel knife 8mm alloy knife 10mm
CNC Specifics Control Method 4 axes CNC controlled X, Y, Z
Display 15-inch high-definition LCD touch screen
Storage Capacity 99 groups can be stored, and 999 small V ports can be slotted in one group
Transfer Method Ball screw/linear guide/rack and pinion
Machining Speed X Axis Forward Speed 4-38m/min(Stepless speed regulation)
X Axis Backward 4-120m/min
Tool Holder(Y1 axis) and end pressing material (Y2 axis) 0.5m/min
Feeding(Z axis) 6m/min
Machining Precision Front and rear of planer head(X-axis) 0.5mm
Tool holder up and down(Y-axis) 0.01mm
Feeding(Z axis) 0.02mm
Driving Mode Planer head(X-axis) 5kw Mitsubishi Servo Motor
Tool holder up and down movement(Y-axis) 0.4kw Mitsubishi Servo Motor
Feeding(Z axis) 1kw Mitsubishi Servo Motor
Clamping Device Hydraulic clamping system 1.5kw/8L/10Mpa
Dimension Length 4800mm
Width 2850mm
Height 2100mm
Weight 9000kg
Table Flatness ±0.02mm/M
Main Power 380V/50HZ/3PH
