Hcvac Stainless Steel Furniture Metal Vacuum PVD Coating Machine

Product Description

Stainless steel furniture table PVD ion coating machine The series of equipment is designed for stainless steel sheet and pipe, stainless steel parts to get a decorative coating by ion plating technique, the ion plating layer has a real metal texture, which is much different from chemical coating.
We can make machine Diameter from 800mm until 3500mm, height from 800mm until 7500mm, it suitable for coating all kinds of stainless steel sheet, stainless steel pipe, and stainless steel parts and furniture including, chair, table, handrail, display showcase, door handle, door frame,advertising board, tableware, flatware, utensil etc.
Stainless steel sheets size(2 pieces per cycle,3 pieces per cycle,4 pieces per cycle,6 Pieces per cycle)
size: 4" x 8" (1219mm x 2438mm) size: 4" x 10" (1219mm x 3048mm) size: 5" x 10" (1523mm x 3048mm) size (1500mm*4000mm) or Longer.
Stainless steel tubes:3-6 Meters Long, Diameter upto 127mm.
We have installed this machine in Korea,Thailand,Indonesia, German,Austrialia India U.A.E.,Malaysia,Turkey,Iran, Egypt and other countries, we can provide turnkey project for customers,including stainless steel cutting,slitting,8k mirror,No.4.hairline,etching,PVD and plastic lamintor line.
Middle type:
Vertical type:
Features:
The machine can get all kinds of colors on stainless steel products, inluding golden, rose gold, bronze, antique-bronze,coffee, blue, purple, black etc.
With three sets of large power vacuum pumping systems, high pumping speed, short cycle time; With 34-56 pieces of round arc targets, they are installed reasonable, at the same time, equipment is equipped with pulsed bias system, which make the adhesion of coating strong, color of coating uniform.
Touch screen + PLC control achieved full automatic of equipment, manual and auto can be switched any time, which make machine reliable and easy operation.
Color series:
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C,O) and DLC

Model (customerize)	HCCA-1215	HCCA-1818	HCCA-2236	HCCA-2545	HCCA-2270
Dimension	D1250*H1500mm	D1800*H1800mm	D2200*H3600mm	D2500*H4500mm	D2200*L7000mm
Loading ability	1000*1300mm MAX	1500*1500mm MAX	Sheet:1250*2500mm 4 pieces/Batch	Sheet:1250*2500mm 6 pieces/Batch	Sheet:1250*2500mm 10 pieces/Batch
Machine Size	L5*W5*H2M	L6*W6*H2.5M	L6*W8*H11.5M	L8*W8*H12.5M	L20*W8*H2.5M
Power source	Electric-arc power, Filament power, Pulsed bias power supply
Process gas control	Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure	Vertical top opening door or Horizontal open front door, pump system postposition, double water cooling
Vacuum system	Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customer's special technique requirement.

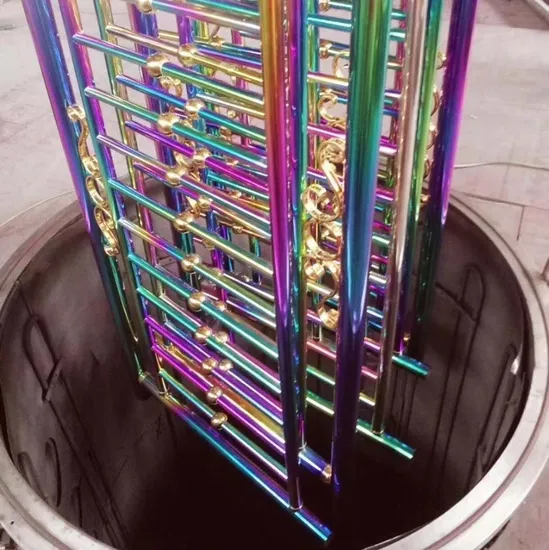

Application:
Company Information:
Factory workshop:
Certificate:
Delivery:
Clients:
Why Choose HCVAC system?
Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More up time due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space saving design PVD option available on all plants 1 year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Easy to implement:To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part's history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
Contact us:
Please feel free to contact us for further information!

---
