US$1,000.00-3,000.00
|
1 Set
(MOQ)
|
Basic Info.
Power Source
Electric or Diesel Engine
Drive Type
Belt and Gear Drive
Portable Harvester Type
Backpack Type
Certification
QS, GMP, ISO9001:2008, CE
Application Field
Agriculture
Guarantee of Quality
3 Years
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Productivity
1000-1500kg/H
Transport Package
in Wooden Case
Specification
1330*750*1570mm
Production Capacity
500 Sets / Month
Product Description

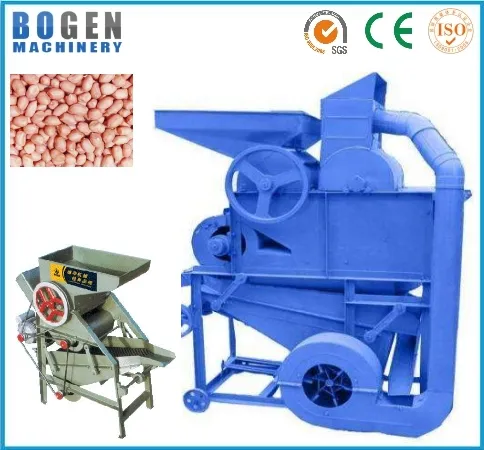

Peanut sheller machine, Peanut shelling machine, Peanut huller machine, Peanut peeler, Peanut peeling machine, Peanut decorticator
Bogen brand series peanut shelling machine according to JB / T5688.1-2007 "peanut sheller technical conditions" design and manufacturing, in line with JB / T5688.2-2007 "peanut sheller test method" standard. Shelling by suspension sleeve, wind primary, secondary gravity separation cleaning, peanuts after the selection can be automatically loaded sacks, it has a simple and compact structure, flexible operation, easy maintenance, high shelling efficiency, performance high, saving labor, etc., are fully applicable to individual households peanut processing, grain, oil and food processing industries peanut sheller job. The majority of flower production areas and the ideal equipment for individual specialist wealth.
Technical Parameters:
| No. | Items | unit | Parameter |
| 1 | Model | / | BG-1000 |
| 2 | structure type | / | Double drum |
| 3 | Dimensions (length X width X height) | mm | 1330X750X1570 |
| 4 | Weight (without motor) | kg | 160 |
| 5 | Motor Power | Kw | 2.2--3.0 |
| 6 | Sheller agencies | Type | / | Double drum |
| Drum | / | Suspension sleeve |
| Length of the roller | mm | 300 |
| Roller diameter | mm | 220 |
| Roller Speed | r/min | 290 |
| intaglio type | / | Grating type |
| Sheller gap | mm | 20 |
| Mesh size | mm | 9--11 |
| Grating diameter | mm | 6 |
7 |
Screening mechanism | Type | / | proportion of scree
|
| Swing | mm | 35 |
| frequency | Hz | 750 |
| Screen surface inclination | (o) | 11045/ |
8 |
Winnowing agencies | Type | / | Centrifugal |
| Fan diameter | mm | Φ248 |
| Fan speed | r/min | 2000 |
9 |
Wind feed mechanism | Type | / | Centrifugal |
| Fan diameter | mm | Φ300 |
| | | Fan speed | r/min | 2200 |
| Productivity kg/h | 1000-1500 |
| Crushing rate % | ≤4.0 |
| Injury rate % | ≤3.5 |
| Stripping the net rate % | ≥98 |
| Impurity rate % | ≤3.0 |
| Loss rate % | ≤0.5 |
| Load noise dB(A) | ≤90 |
>>
