Injection Machine 730t by C Screw

US$30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
UNL730
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Transport Package
Export Standard Packing, Wood Case
Specification
CE, ISO
Trademark
Mengkwa
Origin
Zhejiang, China
Production Capacity
90-160

Product Description

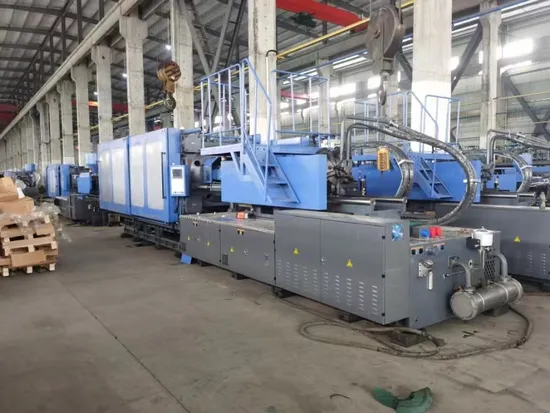

Injection machine 730T by C screw
Specification for 730t :
A B C
INJECTION UNIT
Screw diameter mm 90 95 105
Screw L/D ratio L/D 23.2 22 19.9
Shot volume(theoretical) cm3 3181 3544 4330
Injiection weight(ps) g 2895 3225 3940
Injection rate g/s 574 640 781
Injection pressure Mpa 195 175 143
Screw pressure rpm 115
CLANPING UNIT
Clamping force kN 7300
Open stroke mm 950
Space between tie bars(W×H) mm 950×950
Max.Mold height mm 960
Min.Mold height mm 400
Ejector stroke mm 280
Ejector force kN 210
OTHERS
Max.Pump pressure MPa 16
Pump motor power kW 56+56
Heating power kW 56.7
Machine dimension(L×W×H) m 11.43×2.40×3.14
Oiltank cubage L 1200
Machine weight t 37

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
