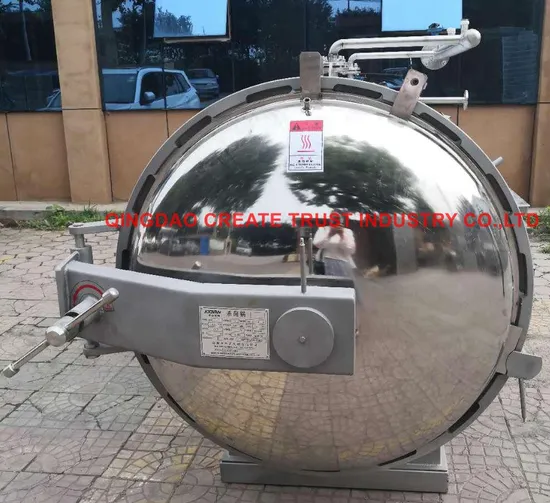

China Advanced Technical Sterilization Autoclave with Siemens PLC Control System (CE/ISO9001)

Product Description

China advanced technical sterilization autoclave,sterilizing autoclave,sterilization pot,sterilizing pot,sterilization boiler,sterilizing boiler.
Usage:
It is widely used in the sterilization and processing of various meat products, soybean products, dairy products, egg products, seafood, beverage products, snack foods, etc., as well as the deep processing of agricultural and sideline products, and the production of chemicals and medicines.
Functions:
PLC program automatic control, touch screen instruction input.
Electronic and mechanical double overpressure protection.
Electronic and mechanical double safety chain.
Electronic temperature deviation correction.
Electronic overtemperature automatic protection.
Abnormal temperature alarm.
Abnormal pressure alarm.
Abnormal water level alarm.
Automatic steam hammer noise elimination.
Temperature difference (thermal distribution) ±0.5ºC in the pot.
Intelligent temperature control, temperature control precision within ±0.3ºC.
Full top shower sterilization method.
Suitable packaging: plastic bags, plastic bowls, tin cans, glass bottles, etc.
Parameters:
Inner diameter: φ1600 mm , useful size
Inner length : 6700 mm,useful size
Total volume: 14.4m3
Maximum working pressure : 0.33 Mpa (design 0.35Mpa)
Maximum working temperature : 145 ºC (design 147 ºC)
Material of body : SUS30408 Stainless steel
Thickness of body : 6mm
Plate heat exchanger (heat transfer area 45m2)
Hot water tank size: φ1000mm /length 2000mm /volume 1.8m3)
Thickness 3mm,Common pressure.
PLC SIEMENS control system
Need match one boiler: 1.0ton/h / 0.5-0.6Mpa
Size of autoclave: 9000×2000×3400mm L,W,H
Sterilization water for softening water, hardness: ≤ 0.003mmoli /L
he cooling water is tap water.
The chloride ion content in the water is not higher than 25mg/L.
The temperature of cooling water should be less than 25ºC.
Service of us : We can design whole line automatic technical. Our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect. All we do is for longterm cooperation , " CREATE TURST" !

---
