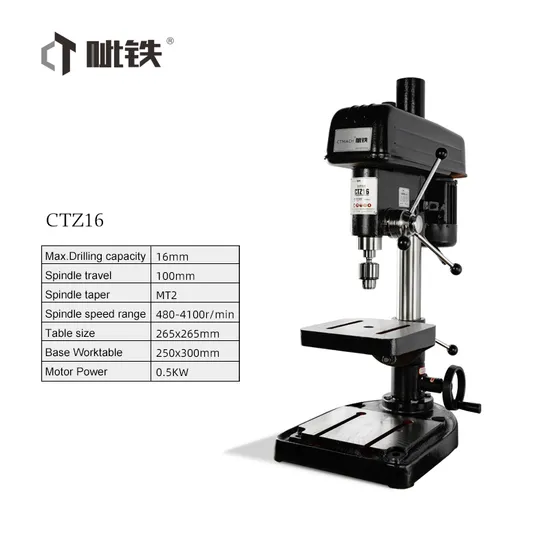

High Rigidity Hand Tools Portable Drill Press Machine Ctz16

US$725.00
1-4 Sets
US$696.00
5-9 Sets
US$667.00
10+ Sets

Basic Info.

Model NO.
CTZ16
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Feature
High Precision
Produce Capacity
1000
MOQ
1PC
Transport Package
Standard Wooden Packing
Specification
760*400*1120mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

CTZ16 CTZ25
Max.Drilling capacity 16mm 25mm
Column Diameter 70mm 85mm
Table size 265x265mm 290x320mm
Bottom worktable size 250x300mm 335x335mm
Spindle taper MT2 MT3
Spindle travel 100mm 125mm
Distance from spindle to column guide rail 193mm 242.5mm
Distance from spindle end to table surface 0~255mm 0~265mm
Distance from spindle end to base working surface 250-500mm 265-545mm
Spindle speeds 480~4100 rpm 340~1800 rpm
Motor Power 0.55KW 1.1KW
Net weight/Gross weight 115/100kg 160/140kg
Overall dimensions 390*698*1080mm 400*760*1120mm
Package Size 800x424x962mm 860x476x1013mm
