US$29,800.00-31,500.00
|
1 Set
(MOQ)
|
Basic Info.
Certification
ISO9001, CE
Finished Chip Size
Customerized
Transport Package
Plastic Film
Specification
9000*2300*2500
Production Capacity
500 Sets/Year
Product Description

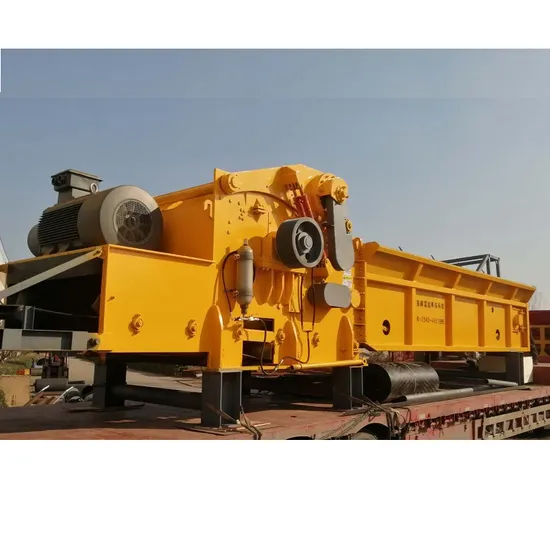

FD1400-600 is applied for waste wood pallets, furniture scrap, tree bark,core,wood branches and variety of non wood raw materials such as all kinds of bulk straw, cotton stalk, reed, wide application range.It can be matched with the unpacking machine.It is applied for the biomass power station, pellet plant,paper plant,fiber board factory, pharmaceutical factory,chemical plant,organic fertilizer plant ,animal husbandry and etc.
Technical Parameter Of Host System
| Model | FD1400-600 |
| Feeding Inlet | 1400*600MM |
| Blade Roller Speed | 888RPM |
| Capacity | 15-22T/Hour |
| YG8 Hammer Blade Quantity OR Blades | 24 pcs hammers or 3 sets blades |
| Max Processing Wood Diameter | 250MM |
| Diesel Engine Power or Electric Power | 400HP or 160KW |
| Wood Chipper Size | 20-50MM(as customers'requirement) |
| Working Life Of THE Hammers | 4000T-6000T |
Technical Parameter Of Feeding System
| Model | FD1400-600 |
| Slot Chain Plate Feeding Conveyor | 1 Set |
| Feeding Motor Power | 11KW+7.5KW Frequency motor |
| Conveyor Length | 4700MM/6000MM |
| Feeding Speed | 2-18M/Min |
| Feed conveyor Material | Chain conveyor |
| Gear Box | Hardtooth |
Technical Parameter Of Discharging System
| Model | FD1400-600 |
| Outlet Conveyor Belt | 1Set |
| First Outlet Motor | 4KW With Gear Box |
| Second Outlet Motor | 5.5KW With Gear Box |
| Conveyor Material | 14-16# Channel/ Square Tube |
| Conveyor Length*Width | 10M*1M |
| Conveyor Material | Nylon 4 Layer |
| Outlet Height | 3800-4500MM |
Intelligent Electronic Control System
| Model | FD1400-600 |
| Large Control Cabinet | Ground |
| Host Start Model | Soft Start |
| Feeding Speed Control Model | Frequency Feed |
| Electrical Control | Control Cabinet + Remote Control |
>>
