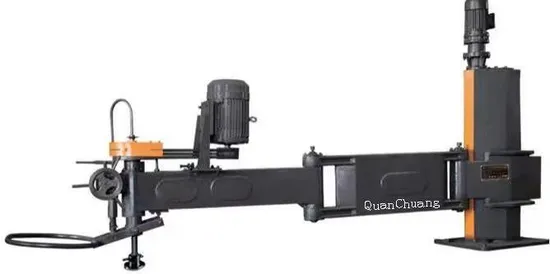

Fengyuan Sf-2500 Manual Polishing Machine for Marble Granite Hand Polisher

Product Description

Product Description
The machine is operated manually. The grinding disk is made of cast steel. Cooling water is applied to protect the grinding apparatus. Main motor runs at high-speed with V-belts to drive the principal axis of polishing head and the other motor for vertical movement controls the polishing head rise and fall. It controls the position of the polishing head according to the height of stone slabs and adopts air-actuated cylinder to impulse grinding disk when polishing the stone slabs thoroughly. Product Parameters

Model Type.	unit	SF-2500	SF-3000
Gyro radjus	mm	2500	3000
Max.spindle lifting stroke	mm	80
Max.lifting stroke	mm	470	470
Water consumption	m3/h	1
Air consumption	kW	5.5
Total powe	kW	6.1	6.1
Dimension(LXWXH)	mm	3200X1650X1800	3800X1650X1800
Weigh	kg	750	850

Detailed Photos

Manual Stone Polisher Stone Polishing Machine for Granite
-- pneumatic lifting system(optional)
-- Two main drive motors are available: single speed and dual speed
-- 2.5m rocker arm makes the polishing head work wider and is suitable for large slabs.
-- The equipment is simple to operate and easy to maintain later.
-- Marble polishing head and polishing pad adapter can be added for polishing for different purposes.
