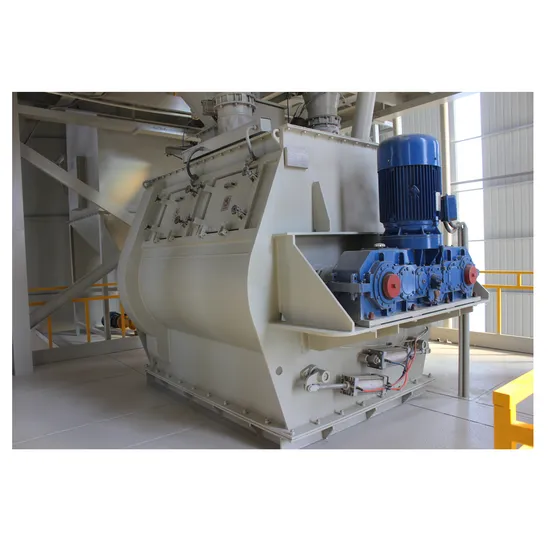

4m3 Paddle Type Tile Adhesive Mixing Machine

Product Description

Work principle
Agravic dual shaft mixer works in the principle of convection mixing, the twin shaft
paddles are installed inside the drum and rotate in the opposite direction each
other.
Each paddle is designed based on scientific calculation and has reasonable space
and angle value. When the materials are thrown to the air flowing layer inside the
drum by the rotating force from the paddles, the material will be weightless
instantaneously and fall into the mutual space, the middle layer will form a
fluidized weightless area and vortex, the bottom form a flowing layer, as a result,
the materials are taken 3D compound motions to mix the materials evenly.
The machine has been widely applied in drying and mixing materials in these
industries: chemical, metallurgy, building, coating, resin, pesticide, feed and
powder.
Character:
1. different types of discharge method can be chosen, manual, electric and pneumatic,
2. install the flying cutter which can diffuse the fiber rapidly.
3. air-phase equilibrium apparatus make the mixing more uniformly.
4. the assembled paddle structure decrease the maintenance cost significantly.
5. big opening design reduce the dead end, can discharge cleaner and faster.
6. it can do solid-solid(powder-powder) mixing, solid-liquid(powder-liquid) mixing and drying.
7.Mixing speed is fast, normal the powder mixing just need 2~3 minutes.
8.It work under sealed condition, reliable operation, easy maintenance.
Technical parameters:

Model	Full volume (m3)	Load coefficient	Power (kw)	Rated speed (r/min)
WZ-0.5	0.5	0.4~0.6	5.5	58
WZ-1.0	1.0	0.4~0.6	11	51
WZ-2.0	2.0	0.4~0.6	18.5	43
WZ-3.0	3.0	0.4~0.6	22	38
WZ-4.0	4.0	0.4~0.6	37	38
WZ-6.0	6.0	0.4~0.6	45	34
WZ-8.0	8.0	0.4~0.6	55	29
WZ-10.0	10.0	0.4~0.6	75	29

---
