US$4,500.00-9,600.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
CKD-PLUV-3/5, V22.10
Laser Visibility
Invisible
Applicable Material
Nonmetal
Cooling System
Water Cooling
Technical Class
Pulse Laser
Laser Wavelength
Deep Ultraviolet
Laser Classification
Semiconductor Laser
Type
Semiconductor Laser Marking Machine
Marking Method
Scanning Marking
Power of Laser Source
Optional: 3W or 5W
Marking Scope
Optional: 100*100/150*150/200*200mm
Graphic Format Supported
Ai,Plt,Dxf,Dst,Svg,Nc,G,JPG,JPEG,BMP,PNG,GIF,Tga,T
Material Example -1
Glass, Acrylic, Ceramic, Plastics and So on
Material Example -2
Monocrystalline Silicon Chip, IC Grain, Sapphire
Shipping Date
3-7 Work Days After Payment for Standard Type
Certification
CE, FDA, CCC, ISO
Transport Package
Wooden Box
Specification
CE passed, Europe/ Asia/ America Standard
Production Capacity
20 Set/Month
Packaging & Delivery
Package Size
63.00cm * 48.00cm * 40.00cm
Package Gross Weight
35.000kg
Product Description

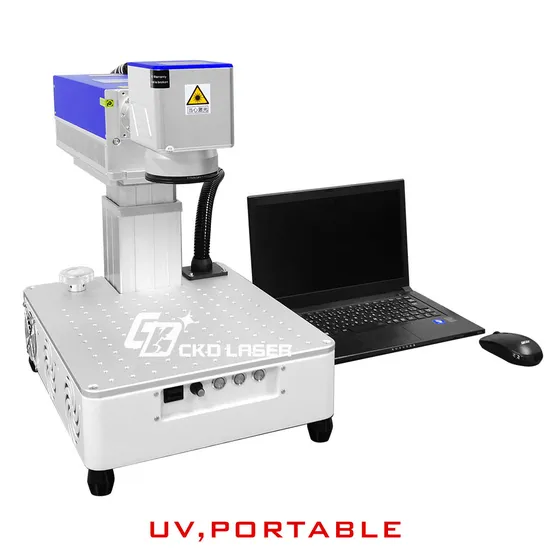

PLUV V22.10 version inherits E-focus feature of previous V21.03, but much smaller, and don't need connect a water chiller. Portable 26Kg E-focus Air-cooling, don't need a water chiller
It can mark metal, glass, rubber, ceramic, plastic, sponge, wood, leather, stone and so on, including kinds of metal and non-metal.
Default marking scope is 100*100mm
High precision retractable distance 9-43 cm from position board to lens. Pass 48 hours 60Kg load bearing and accuracy test. Escort for your long-term use, reliable and sophisticated.
Full considered design the standby knob at the side, make sure focus can be raised and lowered even without electricity.
Makes all operations easily by once plug on extra device.
Automictically stop moving up/down when near limit position, safe and automatized.
Configuration of CKD-PLUV V22.10:
| Type | CKD-PLUV-3 | CKD-PLUV-5 |
| Laser | 3W UV | 5W UV |
| Focus | E-focus |
| Marking scope | 100*100mm | Optional: 100*100/150*150mm |
| Cooling mode | Air-cooling |
| Weight | 26Kg | 26Kg |
OPTIONAL PARTS
Rotary: 50/80mm
Position bar: with slid slots
Laser protective goggle: multi-wavelength, OD4+
Recommend smoke purifier:
Small power: CKD-EX-2000
Big power: CKD-EX-2001
>>
