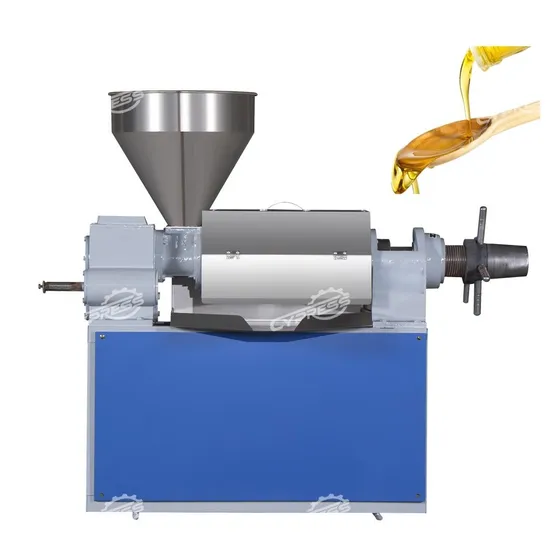

Yzyx60 Yzyx85 Screw Oil Press Soybean Oil Extractor Mustard Oil Making Machine

Product Description

YZYX60 YZYX85 Screw oil press soybean oil extractor mustard oil making machine
Product Description
YZYX series screw oil press is suitable for pressing rapeseed,cottonseeds,soybean,peanut,sesame,tea seed,flaxseed other oil seeds.

Working Principle
The working principle of the oil press is mainly to extract oil from the oil by physical pressing. The oil press usually adopts the screw pressing method. The oil enters the pressing chamber from the hopper. Through the rotation and advancement of the screw shaft, the oil is subjected to high pressure and high friction, thereby squeezing out the oil.
Product Parameters

model;YZYX60 Main power:3kw Capacity:1ton per day Shaft speed:38rpm Size:1020*400*1180mm Weight:150kg

Model:YZYX85 capacity:1.8ton/day Main power:5.5kw Shaft speed:42rpm Size:1085*500*1130mm Weight:250kg

Model:YZYX95-10 capacity:4.5t/day Main power:7.5kw-11kw Shaft speed:30rpm Size:1650*500*1320mm Weight:500kg

Model:YZYX120 capacity:6.5t/day Main power:11-15kw Shaft speed:30rpm Size:1800*500*1400mm Weight:600kg

Model:YZYX130 Capacity:10ton/day Main power:18.5kw Size:1900*650*1600mm Shaft speed:34rpm Weight:800kg

Model:YZYX150 Capacity:12t/day Main power:22kw Shaft speed:34rpm Size:2100*650*1600mm Weight:900kg

Detailed Photos

---
