Professional laser Machine Metal Stainless Steel Tube Laser Cutting Machine

Product Description

Product Description
1.Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability.
2.Adopts imported high precision, high speed, linear guide rail drive, good rigidity and good stability.
3.Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.
4.Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
5. Adopting servo motor and driver, and combind Japan Reducer, which can make sure machine high speed and big power.

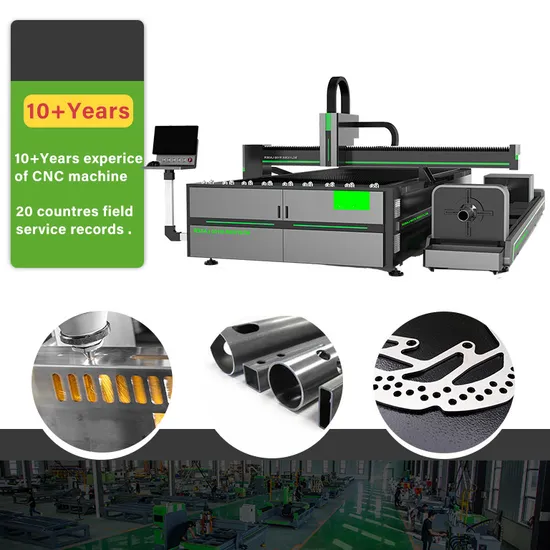

Detailed Photos
Product Parameters

Fiber Laser Cutting Machine
Model	BCM3015FT
Working area	3000*1500mm
Optional working area	2500*1300mm/2000*3000mm 2000*4000mm/2000*5000mm/2000*6000mm...
Laser source	Raycus 1000w
Optional power	1500w,2000w,3000w, 4000w, 6000w(Raycus and IPG)
Max. empty running speed	120m/min
Max. cutting speed	0-30m/min (Depending on the material and thickness)
X, Y, Z Axis Orientation Precision	≤±0.05mm/m
X, Y, Z Axis repeat precision	≤±0.03mm /m
Min. line width	≤0.15mm
Driving way	Imported servo motor
Transmission way	Y-axis import gear rack double driver, X-axis imported ball screw
Cooling system	Water Cooling
Continuous working time	24hours
Power requirements	380V/3 Phases /50Hz or 60Hz
Gross weight	2500kg
Packing size (L*W*H)	4500*2300*1800mm

More products

Application
It is widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts,Nameplates, etc, especially professional metal cutting industry materials which require high precision and pursue high efficiency .
Company Profile
BCAMCNC , a professional machinery manufacturing company, dedicated to the production of cnc router, co2 laser machine,fiber laser cutting machine, plasma cutting machine, etc.,with 6000 square meters factory,a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.

Packaging & Shipping
After Sales Service
1. Our engineers could provide 24 online service in English by Whatsapp, Skype, Wechat, Phone, E-mail, etc. All our engineers have rich experience and could speak English, so it's easy for us to communicate with each other.
2. For each customer, we will set up a technical support group through Wechat/Skype/Whatsapp, could provide machine installation, operation guidance, technical support in this group. Any question you can contact us in this group, we will respond quickly.
3.We could provide door-to-door service. Our engineer could support you technology to your country if necessary.

---
