US$700.00-1,300.00
|
1 Set
(MOQ)
|
Basic Info.
Certification
CE, ISO13485
Electric Tension
110/220V
LCD Display
With LCD Display
Ultra High Temperature Alarm
Ultra High Temperature Alarm
Sterilization Information Recording and Printing
Sterilization Information Recording and Printing
Sterilization Class
Class B (According to GB0646)
Sterilization Temperature
121c,134c
Drying System
Vacuum Drying System
Sterilization Data
USB(Standard) and Printer(Optional)
Water Supply System
Build-in Water Tank Easy to Clean
External Size(W*D*H)mm
495*700*410; 610*810*590
Package Size(W*D*H)mm
610*810*590; 610*810*590
Gross Weight(Kg)
47; 63; 65
Tray Holder
3 PCS Ss Trays on Ss Shelf
Transport Package
Wooden/Carton Package
Production Capacity
3000pieces/Year
Product Description

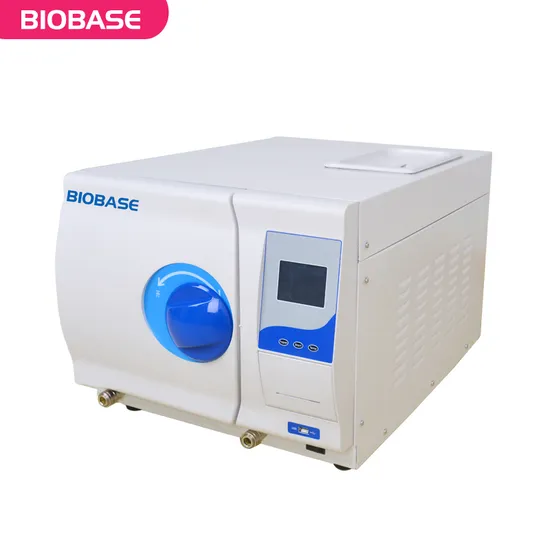

Product Description Features:
*Built-in open type water tank The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected with water.
*High-efficiency ultimate vacuum The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.
*Large LCD display for BKM-Z18/24B The LCD screen can display temperature, pressure, time, operating status, failure warning and other information. It is convenient for customers to observe the sterilizer running status.
*Multiple program types The system has various programs that include: packed items, unpacked items, custom program, rapid program, BD testing program, vacuum testing program, preheat program and drying program.
*Standard USB port for BKM-Z18/24B Users can store the sterilization data with USB disk.
*Optional mini printer can be attached to record the process of sterilization.
Company Profile Technical parameters:
Model
| BKM-Z16B
| BKMZA | BKMZB
|
| Capacity | 16L | 18L | 23L |
| Chamber Size(mm) | φ230*360 | φ247*360 | φ247*470 |
| Sterilization Class | Class B (according to GB0646) |
| Sterilization Temperature | 121°C, 134°C |
| Special Program | HIV, HBV long-sterilization program | / |
| Drying System | Vacuum drying system |
| Display | LED display | LCD display |
| Testing System | B&D Test
Vacuum Test
Helix Test |
| Control Precision | Temperature: 1°C
Pressure: 0.1 bar |
| Sterilization Data | BKM-Z16B: Printer(optional)
BKM-Z18B/BKM-Z24B: USB(standard) and printer(optional) |
| Safety System | Hand lock door
Pressure lock system
Relief valve in case of over pressure
Pressure or temperature over load protection
Alarm for system failure, finish reminding, water level warning |
| Water Supply System | SUS304
Max working pressure: 2.3bar
Min working pressure: -0.9bar
Design temperature: 140°C |
| Ambient Temp. | 5 ~40°C |
| Noise | <50dB |
| Consumption | 1800W | 1950W | 1950W |
| Power Supply | AC110/220V±10%, 50/60HZ |
| External Size(W*D*H)mm | 445*550*395 | 495*600*410 | 495*700*410 |
| Package Size(W*D*H)mm | 550*670*500 | 610*810*590 | 610*810*590 |
| Gross Weight(kg) | 47 | 63 | 65 |
