Tube Annealing/ Lacquer Curing Oven

Product Description

A.Quick Details
Applicable Industries:Manufacturing Plant
After Warranty Service:Video technical support, Online support
Local Service Location:Turkey, Indonesia, Pakistan
Showroom Location:Turkey, Viet Nam, Mexico
Application:MEDICAL, Chemical, Machinery & Hardware
Automatic Grade:Automatic
Driven Type:Electric
Voltage:380V/Hz
Dimension(L*W*H):4832*1300*3040mm
Weight:1800Kg
Certification:CE Certification
Warranty:1 YEAR
After-sales Service Provided:
Online support, Video technical support, Field maintenance and repair service
Key Selling Points:Energy saving
Production Speed:≤60pcs/min
B.Packaging & Delivery
Selling Units:Single item
Single package size: 50X50X50 cm
Single gross weight:50.000 kg
Package Type:International Export Standard Wooden Case

Packaging
Size	4832 (L) * 1300 (W) * 3040 (D)mm
Weight	1800Kg
Packaging Details	Vacuum treatment, wooden-case package

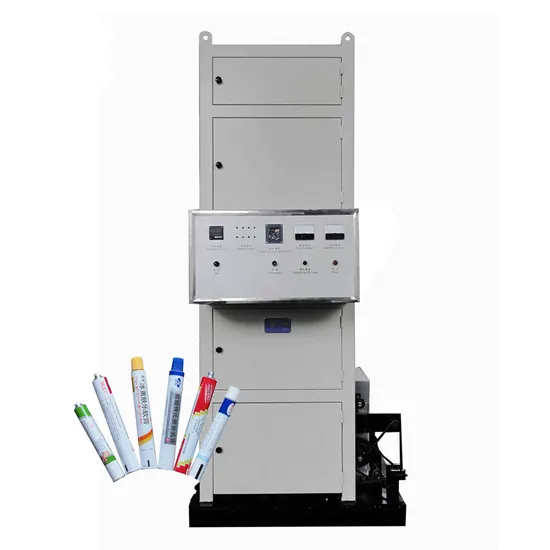

C.Product Description TH05 aluminum collapsible tube annealing oven is a supporting equipment for aluminum collapsible tube production line.The molecular structure of the extruded aluminum tubes generates stress and it lose flexibility. To de-stress it is annealed at a certain temperature, which makes it soft , burn off the dirt and lubricants from the tube to prepare dirt free surface to receive prints. The annealing oven adopts the form of electric heating, which is safe and clean. Conveying basket chain puts germ tubes into the "C" basket one by one. The tubes are then driven to the oven where they are heated for 3-5minutes. After that, the tubes are sent to the cooling section and then to the next procedure.

SPECIFICATIONS FOR ANNEALING OVEN
Tube Range	φ11-φ25mm or φ25-φ38mm
Production Speed	60tubes/min
Motor Power	0.75KW
Dimensions (including conveyer chain)	4832*1300*3040mm
Weight	1800Kg
Working Temperature	200-500ºC
Annealing time	150s
Conveyer hopper	"C"basket
Electric heating power	4KW*8

D.Main Features FUJI temperature controller ensures the temperature within plus or minus 2 ºC of setting temperature.
The electric heating components adopt stainless steel thermal resistance and have features of uniform heating and easy operation. Heating components are easy to detach and replace.
E.Company introduction
we are experts of aluminium aerosol cans facilities.
Changzhou Xirun Machinery Manufacturing Co., Ltd. is located in beautiful lakefront of TAIHU. It is dainty and convenient located. Yongrun has been mainly specialized in machineries of filling&sealing toothpaste, Research and Development, Manufacturing and related services about production lines for aluminium tubes. The company has main products as following: Composite tube filling&sealing machine, aluminium tube filling&sealing machine, two color filling&sealing machine, three color filling&sealing machine; Automatic boxing machine, automatic opening paper and boxing machine, heat contract packing machine, Impact Extrusion Press, tube trimmer machine, Internal Lacquering machine, base-coating machine, 4-color Printing machine, 5-color Printing machine, 6-color Printing machine, Letexing machine, Capping machine, tube annealing oven, lacquer curing oven, decoration drying oven, and so on.
The company's products have been selling well at home and abroad. The company's got high reputation from cooperating with following famouse enterprises: guangzhou libai enterprise group co.,ltd, caoshanhu branch of chengzhi shareholding co.,ltd, aoqili co.,ltd, TianJin Lantian Group, Shaihai JiaTian Pharmaceutical Packaging Co., Ltd, and so on. Meanwhile, the company's products got good welcome from their customers from Argentina, Chile, Egypt, Thailand, Pakistan, Burma, Vietnam, Syria, India, Russia, Indonesia, Malaysia, and so on, by high quality, competitive prices, good service and delivery on time.
Based on the Quality is the first and Customers are the highest, YONGRUN have been pushing good capability and high quality products to satisfy customers' needs at home and abroad.

Would like to know more about our equipments? Feel free to send us an inquiry!

---
