Customizable Scf Self Cleaning No Mesh Melt Filter for Plastic Recycling Machine

Product Description

Product Description

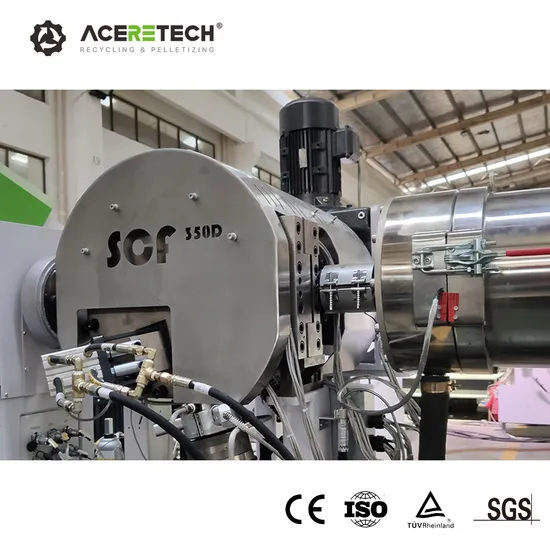

The new SCF self-cleaning filtration system makes non-stopping recycling extrusion, especially suitable to highly contaminated materials re-pelletizing.

Aceretech Recyclable Plastics Include:
* LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton * PP/OPP/BOPP/CPP film, woven bag,non-woven fabric (melt blown) * PA66 fishing net, silk, factory trim, carpet
* PET/BOPET bottle flakes, film, silk, waste cloth, foam,optical film
* PTT wire
* EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
* HIPS/PC/ABS home appliance housing, electronic waste, factory plastic
* PVB crushed material, flakes
* PU
Non-mesh Design
Different from traditional screen changers, which requires timely change the dirty wire mesh, the SCF system will present continuous filtering performance, and remove the contaminates from the surface of steel screen plate automatically.It has the advantages of a high degree of automation and large-volume production, which can increase the recycling rate of recycled materials, and the slag discharge rate (the amount of slag discharged and the plastic content in the accompanying slag discharge process) can reach 1:1
The effective accuracy of SCF can reach 120 meshes. The use of Aceretech SCF self-cleaning filters can more efficiently produce pelletizing lines with an output of more than one ton per hour. The SCF filtration system consists of hardened steel screen plate, rotating unit,hydraulic section,contaminates removing blades and discharging screw.
SCF filtration system can handle and remove up to 5% contaminates in the melt flowing, can separate the contaminates as: paper,wood, aluminum, unmelted plastic and rubbers etc.
Product Parameters

Type	SCF 350	SCF 350-D
Diameter	350mm*1	350mm*2
Filtration area	961cm2	1922cm2
Filtration fineness(mesh)	40-120	40-120
Filtration fineness (um)	120-380	120-380
Hole shape	Cylinder/Cone	Cylinder/Cone
Processing technic	CNC/Laser	CNC/Laser
Max. melt pressure	200bar	200bar
Max. melt difference	150bar	150bar
Throughput capacity	200-500kg/h	500-1000kg/h
Rotation motor power	2.2kw	2.2kw
Discharge scrw motor power	0.37kw	0.37kw*2
Heating power	28kw	33kw
Dirt discharge	Screw	Screw
PLC	Siemens	Siemens
Inverter	ABB	ABB
