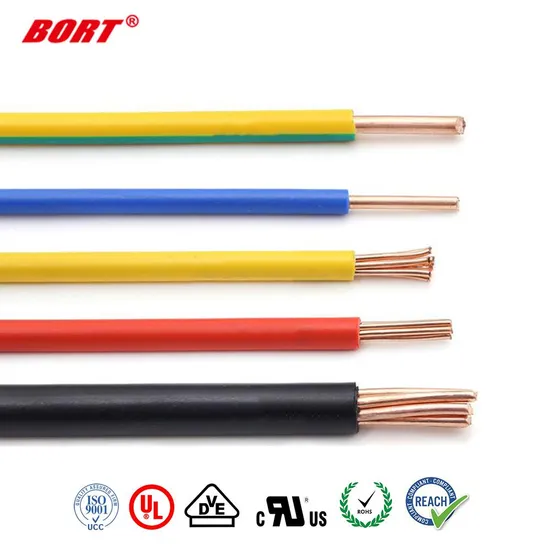

UL Electric Wire Cable PVC Insulated Hook up Wire UL1007

Product Description

UL Electric Wire Cable PVC Insulated Hook Up Wire UL1007
PRODUCT DESCRIPTION
★Rated temperature:105ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 30--16AWG
★XL-PVC insulation
★Passes UL VW-1 FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For internal wiring of appliance
PRODUCT STANDARD

Conductor		Finished product			Maximum Resistance at 20ºC
AWG	NO.of Cond	Insulation Thick.	Outside Thick.	Packing
	mm	mm	mm	m/r	Ω/mm
30	7/0.1	0.41	1.10	610	354.33
28	7/0.127	0.41	1.20	610	223.75
26	7/0.16	0.41	1.30	610	139.76
24	11/0.16	0.41	1.40	610	88.36
22	17/0.16	0.41	1.60	610	60.16
20	21/0.178	0.41	1.80	610	38.58
18	34/0.178	0.41	2.10	610	22.98
16	26/0.254	0.41	2.40	610	15.06
28	1/0.320	0.41	1.15	610	227.39
26	1/0.404	0.41	1.25	610	142.79
24	1/0.511	0.41	1.35	610	89.39
22	1/0.643	0.41	1.50	610	54.30
20	1/0.813	0.41	1.65	610	33.90
18	1/1.024	0.41	1.85	610	21.40

FAQ
Q1: Can I get a free sample? A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details. Q2: How could I pay? A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely. Q3: What is your packing way? Can I have the customized package? A3: We have the standard export package. For more details about the customized package, please contact us. Q4: What is the delivery lead time? A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit. Q5: Are you a factory or a trading company? A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world. Q6: Where is your main market? A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries. Our Services 1. Professional QC and QA team to make sure all products qualified before shipping. 2. Competitive price 3 .Standard package to ensure the safe transportation. 4. Professional service Why choose us 1. Production Qualified production, competitive price, professional service. 2. Technology Professional R& D team 3. Equipment With completive testing equipment. 4. Quality UL/ CE/ FCC/ RoHS/ Reach certificate

---
