Basic Info.
PCD
4X100 5X114.3 6X139.7
Painting
Power Coating,Chrome and Galvanized
Offset
0 +10 -10 Customized
Packaging
Carton or Pallet
Certificate
ECE DOT Tra Sga TUV
Application
Cars Trailers
Welding Process
Automatic Welding
Production Capacity
1500000
Product Description

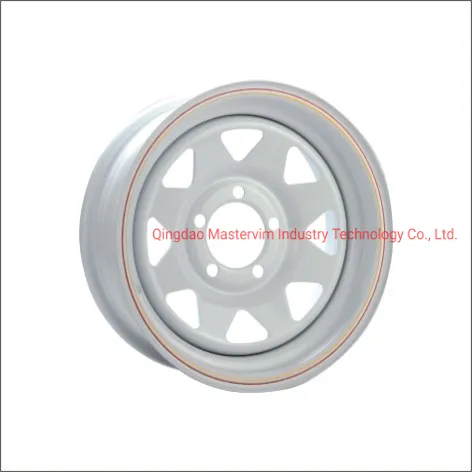

Mastervim supply OEM and ODM service on steel wheels, including small ATV, car trailer, agricultural implement, and truck construction.
Over 70% production capacity for the overseas market, specially customized for OE, we get ISO9001 TS16949 DOT ECE TUV TRA ETRO on additional wheel production.
Car trailer wheels line
Series types optional, such as 8 spoke, modular, directional, EU trailer wheels, 5 spoke for trailer &4x4...
| RIM SIZE | PCD (MM) | CB (MM) | ET (MM) | LOAD CAPACITY (LB) |
| 10x4.5 | 4x100 | 67.5 | 0 | 800 |
| 10x3.5 | 4x100 | 68 | 0 | 800 |
| 12×4J | 4/101.6 | 71.6 | 0 | 1045 |
| 5/114.3 | 75 | 0 | 1100 |
| 13×4.5J | 4/100 | 68 | -13~0 | 1100 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~+3 | 1100 |
| 5/108 | 75 | -10~0 | 1480 |
| 5/114.3 | 75 | -10~0 | 1480 |
| 5/114.3 | 81.5 | -10~0 | 1480 |
| 13×5.5J | 4/100 | 73 | -10~0 | 1480 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~0 | 1480 |
| 5/108 | 75 | -10~0 | 1480 |
| 5/114.3 | 75 | -10~0 | 1480 |
| 5/114.3 | 81.5 | -10~0 | 1480 |
| 14x5J | 5-108 | 75 | -5~ +8 | 1870 |
| 5/120.65 | 84 | 0~14 | 1870 |
| 5-114.3 | 81/84 | -14~0 | 1870 |
| 14×5.5J OR14X6 | 5/114.3 | 81/84 | 0 | 1870 |
| 4/100 | 75 | -10~22 | 1870 |
| 4X101.6 | 67 | 0 | 1100 |
| 4/114.3 | 84 | -10~18 | 1870 |
| 4/139.7 | 108.7 | -10~18 | 1870 |
| 5/120.65 | 84 | -4~20 | 1870 |
| 5/108 | 75 | -10~22 | 1870 |
| 5/114.3 | 81/84 | -10~18 | 1870 |
| 5-139.7 | 108.7 | -17~ +15 | 1870 |
| 5-160 | 125 | -10~ +30 | 1870 |
| 6/139.7 | 108.7 | -10~18 | 1870 |
| 6/139.7 | 110 | -10~18 | 1870 |
| 14*7 | 4-100 | 75 | +4~ +37 | 1870 |
| 5-114.3 | 84 | -10~ +23 | 1870 |
| 5-139.7 | 108.7 | -3~ +30 | 1870 |
| 6-139.7 | 108.7 | -3~ +30 | 1870 |
| 15×5J | 5/114.3 | 81/84 | -10~10 | 2050 |
| 5/127 | 81/84 | -10~10 | 2050 |
| 15×6J | 5/114.3 | 84 | -10~10 | 2150 |
| 5-120.65 | 84 | -22~ +8 | 2150 |
| 5/127 | 84 | -10~10 | 2150 |
| 5/139.7 | 108.8 | -10~10 | 2150 |
| 5/139.7 | 110 | -10~10 | 2150 |
| 6/139.7 | 108.8 | -10~10 | 2600 |
| 6/139.7 | 110 | -10~10 | 2600 |
| 15×7J | 5/114.3 | 84/75/71.6 | -15~15 | 2600 |
| 5/120.65 | 84 | -15~15 | 2600 |
| 5/127 | 84 | -15~15 | 2600 |
| 5/139.7 | 108 | -15~15 | 2600 |
| 5/139.7 | 110 | -15~15 | 2600 |
| 6/139.7 | 108 | -15~15 | 2600 |
| 6/139.7 | 110.5 | -15~15 | 2600 |
| 8x165.1 | 130.8 | -15~15 | 2600 |
| 15×8J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 |
| 5/114.3 | 84 | -25~15 | 2600 |
| 5/120.65 | 84 | -25~15 | 2600 |
| 5/127 | 75 | -25~15 | 2600 |
| 5/127 | 84 | -25~15 | 2600 |
| 5/139.7 | 108 | -25~15 | 2600 |
| 5/139.7 | 110 | -25~15 | 2600 |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6/139.7 | 108 | -25~15 | 2600 |
| 6/139.7 | 110 | -25~15 | 2600 |
| 15x8 | 8x165.1 | 130.8 | -15~15 | 2600 |
| 15×9J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 |
| 5/114.3 | 84 | -25~15 | 2600 |
| 5/120.65 | 84 | -25~15 | 2600 |
| 5/127 | 75 | -25~15 | 2600 |
| 5/127 | 84 | -25~15 | 2600 |
| 5/139.7 | 108 | -25~15 | 2600 |
| 5/139.7 | 110 | -25~15 | 2600 |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6/139.7 | 108 | -25~15 | 2600 |
| 6/139.7 | 110 | -25~15 | 2600 |
| 15*10 or 15X12 | 5-114.3 | 84/75/71.6 | -46~ +58 | 2600 |
| 5-120.65 | 84 | -46~ +58 | 2600 |
| 5-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 5-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 5X160 | 110 | -25~16 | 2600 |
| 5x165.1 | 125 | -25~17 | 2600 |
| 6-139.7 | 108.7/110 | -46~ +58 | 2600 |
| 15x10 | 8x165.1 | 130.8 | -32 | 2600 |
| 16×6J | 5-114.3 | 84 | -17~ +6 | 3200 |
| 5-150 | 112 | 0~ +10 | 3200 |
| 5-139.7 | 108.7/110 | -17~ +10 | 3200 |
| 5-165 | 124 | 0~ +15 | 3200 |
| 6/139.7 | 108.7 | 0 | 3200 |
| 6-114.3 | 84 | -17~ +6 | 3200 |
| 6/165.1 | 130.8 | 0 | 3200 |
| 8/165.1 | 124 | 0 | 3500 |
| 8/165.1 | 125.7 | 0 | 3500 |
| 8/165.1 | 130.8 | 0 | 3500 |
| 16×7J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5-120.65 | 75/84 | -12~ +35 | 3200 |
| 5/139.7 | 108.7 | -25~15 | 3200 |
| 5/150 | 112 | 0~5 | 3200 |
| 5/165.1 | 125 | 0~8 | 3200 |
| 6/139.7 | 108.7 | -25~15 | 3200 |
| 6/139.7 | 110.1 | -28~0 | 3200 |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 |
| 16×8J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5-120.65 | 75 | -12~ +35 | 3500 |
| 5-120.65 | 84 | -12~ +35 | 3500 |
| 5/139.7 | 108.7 | -25~15 | 3500 |
| 5/150 | 112 | 0~5 | 3500 |
| 5/165.1 | 125 | 0~8 | 3500 |
| 6/139.7 | 108.7 | -25~15 | 3500 |
| 6/139.7 | 110.1 | -28~0 | 3500 |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 |
| 16×10J | 5-120.65 | 75 | -12~ +35 | 3500 |
| 5-120.65 | 84 | -12~ +35 | 3500 |
| 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 |
| 5/139.7 | 108.7 | -25~15 | 3500 |
| 5/150 | 112 | 0~5 | 3500 |
| 5/165.1 | 125 | 0~8 | 3500 |
| 6/139.7 | 108.7 | -35~30 | 3500 |
| 6/139.7 | 110.1 | -28~0 | 3500 |
| 8/165.1 | 130.8 | -25~15 | 3500 |
| 17X8 | 6X139.7 | 108.7 | -6 | 3200 |
| 17x8 | 5x127 | 84 | 0 | 3200 |
| 17x8 | 5x139.7 | 108.7or110 | 0 | 3200 |
Customized Service
We supply OE wheels for the factory only,such as trailer factory, equipment OE mfg, after sale shop
Mark the logo depending on your request
Production report
Automatic welding QC &assembling line
Mastervim wheels production line
>>
