High Precision PVC PPR PE Pipe Fitting Injection Molding Machine Making Machine

Product Description

Product Description

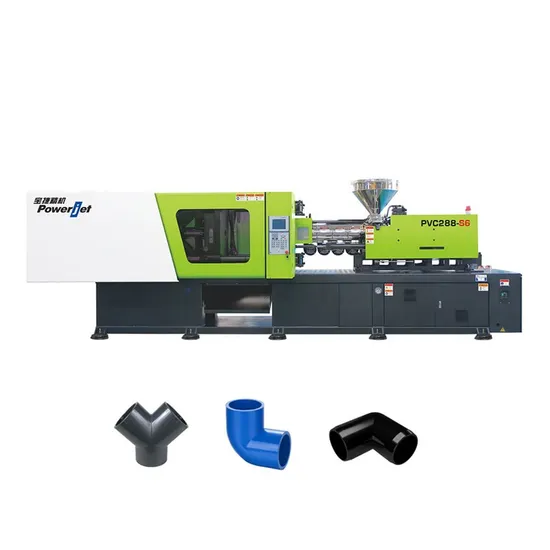

PVC FITTING INJECTION MOLDING MACHINE
Powerjet new type PVC fitting injection molding machines are specialized for different sizes of PVC fitting. Saving 30%~50% of energy by using a servo motor and more device options are available to fulfill customer requirements.
Clamping Force - 90~680(Ton)
Shot Weight(PVC) - 179~2847(g)
Applications - PVC Fitting
Detailed Photos
Product Parameters

	DESCRIPTION	UNIT	PVC288-V6/S6
CLAMPING UNIT	Clamping Force	kN	2880
	Opening Stroke	mm	550
	Max. Daylight	mm	1160
	Movable Platen Size	mm	850x850
	Space Between Bars	mm	610x610
	Max.Mold Height	mm	610
	Min. Mold Height	mm	280
	Ejector Stroke	mm	145
	Ejector Force	kN	77
INJECTION UNIT	Screw Diameter	mm	55	60
	Screw L/D Ratio	L/D	21.6	20
	Injection Pressure	Mpa	221	186
	Shot Volume	cm³	665	792
	Shot Weight(PVC)	g	594	707
		oz	20.9	24.9
	Injection Speed	g/s	173	231
	Plasticizing Capacity	g/s	46	59
	Screw Stroke	mm	280
	Screw Speed	rpm	147
POWER UNIT	Hydraulic System Pressure	Mpa	17.5
	Pump Motor Power	kW	22-40.1
	Heater Power	kW	15.95
GENERAL	Oil Tank Capacity	L	420
	Machine Weight	T	8.2
	Machine Dimensions(L*W*H)	m	5.85x2.1x2.03

Trade Show



After Sales Service



Certifications



Packaging & Shipping





Please feel free to consult us for more information.
Thanks~

---
