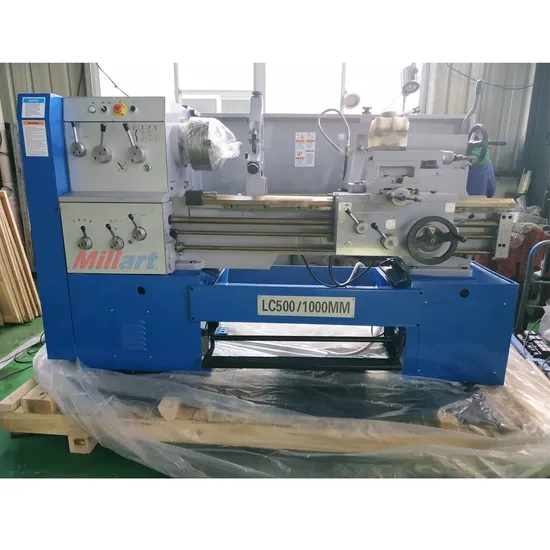

Gap Bed Lathe Machine C6250c/Turning Lathe Machine for Sale

Product Description

Product description:
Technical parameter :
Feature :
Guide ways ultrasonic frequency quenched to ensure a long service life
Guide ways ground to ensure high accuracy
Spindle bore 52mm and the spindle nose conforms to ISO-C6
Gears in head stock precisely ground to reduce noise
Feeding box well sealed to eliminate leakage
Kinds of threads
Tail stock locked by thread or cam lock.
Electric system is reliable and safe.
Electromagnetic brake at users option.
Technical parameter :

Model		C6250C/1000
CAPACITY	Max. swing over bed (mm)	500
	Max. swing over cross slide (mm)	330
	Max. swing in gap (mm)	660
	Center distance	1000mm
	Bed width	360mm
SPINDLE	Spindle hole	52 mm
	Spindle nose	C6
	Spindle taper	MT6
	Spindle speeds	40-1600rpm
FEEDS	Metric threads range(Kinds)	0.25-14mm (24 Kinds)
	Inch threads range (Kinds)	2-40/inch (27 Kinds)
	Module threads range (Kinds)	0.25-3.55mm(16 Kinds)
CARRLAGE	Cross slide travel	220mm
	Compound rest travel	120mm
	Cross-section size of toolshank	20*20mm 2
TAILSTOCK	Taper of tailstock sleeve	MT4
	Dia. of tailstock sleeve	65mm
	Travel of tailstock sleeve	130mm
Main motor power		5.5 kw
Packing size (L*W*H) (mm)		C
Net Weight/Gross Weight		1550/1750

Standard accessories:
3-jaw chuck& flange.
4-Jaw chuck& flange,
dead centers,
reduction sleeve,
drive plate,
face plate,
steady rest,
follow rest,
working light,
Foot brake,
Coolant system
Oil tray
Change gears set
level blocks,
maintenance kit,
foundation bolts/nuts,
Optional accessories:
Spindle cover
Tool post cover
Live center
Drill chuck
Quick change tool post
Digital readout
Tapper turning attachment
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
