Industrial CNC Stone Cutting Machine with High Precision Diamond Wire Saw

Product Description

Function
:
The machine is primarily designed for profiling marble and granite. It adeptly handles a variety of tasks, such as processing arc slabs of diverse specifications, solid and hollow columns, large stone lines, and English letters. Moreover, it transforms stone into polygons and Buddha figures with unparalleled precision.
,
special-shaped square columns, and other unique stone shapes.

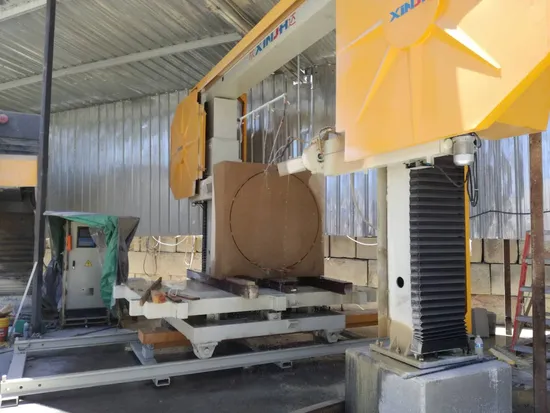

Brief introduction of SHXJ1500 wire saw machine:
1. The machine boasts a stable structure, comprising a top beam
,
two upright columns
,
a square box
,
and a hydraulic station tensioning unit.
,
It features two large flywheels: a driven flywheel with a hydraulic tensioning unit on the left, which manages the diamond wire's tension or slack, ensuring consistent wire pressure. The right side houses a driving flywheel and main motor, allowing wire speed control from 0-40m/s via an inverter. This enables the machine to cut various stone materials efficiently.
2. This sophisticated machine is governed by a four-axis linkage CNC system. Both the machine's lift and trolley movement are orchestrated by a servo system, while the guide wheel rotation uses a step system.
3. Operators can effortlessly write programs and input cutting parameters via the CNC control panel. For complex graphics, users can draw designs in AutoCAD, save them in DXF format, and let the CNC system read and auto-create programs from the inserted USB drive.
4. The trolley moves utilizing a screw rod, which is kept lubricated with oil within its protective cover
(
Patent product
)
.
5. An automatic shutdown feature activates if the wire breaks, displaying the fault on-screen for prompt troubleshooting.
6. The machine is equipped with a water spray system that halts operation if water is insufficient or absent.
,
ensuring safe and efficient operation.
Technical parameters:

Parameters	SHXJ1500(five axis)
Diameter of Wire	Φ8-Φ11
Length of Wire	16500mm
Speed of Wire	0-40m/s
Worktable Size	3000×2000mm
Worktable Whether Revolve	YES
Worktable Load Capacity	50T
Range of Cutter Movement	1600mm
Max Cutting Size(L×W×H)	3000×2000×1500mm
Production Efficiency	1-2m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power	11KW
Water Consumption	3m³/hour
Overall Dimension	7500×5700×4300mm
Diameter of Guide Wheel	Φ200mm
Total Power	21.79KW
Total Weight	10T

Schematic Drawing:
Electric Cabinet & Operation Panel Photos:
Exhibition:

---
