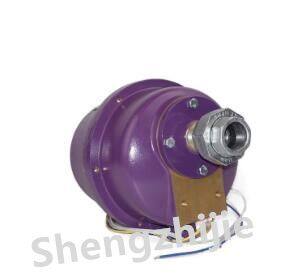

Honeywell C7061A,F Dynamic Self-Check Ultraviolet Flame Detector

Product Details

Product Description

Product Description
FEATURES
• Oscillating shutter interrupts ultraviolet radiation reaching the UV sensor 12 times per minute to provide the UV sensor tube checking function. Amplifier circuitry components are checked from the microprocessor in the 7800 Series Control.
• Detectors can be mounted horizontally, vertically or at any other angle. The self-checking C7061 models require faceplate alignment and have integral locating reference points to assure proper shutter mechanism operation.
• Ultraviolet radiation sensing tube and quartz viewing window are field replaceable.
• Threaded conduit fitting and color-coded leadwires allow rapid electrical installation.
• Models available using Brad Harrison® 41310 connector.
• Two flame detectors can be wired in parallel to reduce nuisance shutdowns in difficult flame sighting applications.
• -40°F (-40°C) rated ultraviolet sensing tube.
• Incorporates UV sensor tube checking feature; used with R7861 Dynamic Self-check Amplifiers.
• Housing meets NEMA 4 enclosure standards (C7061A).
• Protective heat block built into mounting flange. C7061F
• Housing designed to be explosion-proof and Underwriters Laboratories Inc. listed for use in hazardous locations; Class I, groups C and D; and Class II, groups E, F and G.
• Viewing window rated for 100psi (690 kPa).
APPLICATION The C7061A,F are dynamic self-checking flame detectors for sensing the ultraviolet radiation generated by the combustion of gas, oil, or other fuels.

---
