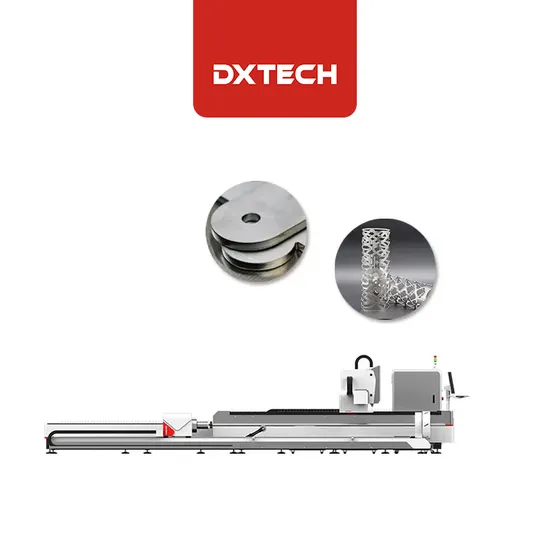

1000W~8000W Hot Sale Plate and Tube Metal CNC Fiber Laser Cutting Machine for Sale

Product Description

Feature
This plate and tube integrated metal fiber laser cutting machine is a dual-purpose machine, which can not only save factory space, but also save economic costs. And it is equipped with a professional CNC cutting system to ensure the high-speed and stable operation of the machine. And equipped with top imported parts to ensure the machine has a longer service life.
Advantage
1. One machine is multi-purpose, it can not only process metal plates, but also process round tubes, square tubes, etc.;
2. Intensive design, saving more than 50% of space;
3. Equipped with a professional CNC cutting system to ensure the high-speed and stable operation of the machine.
4. Using imported laser head, the processing speed is fast, the processing quality is high, and the processing efficiency is high.
5. The top imported accessories are used to ensure a longer service life of the machine.

Machine Part
Fully automatic double pneumatic chuck
1. One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
2. Pneumatic open clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.
3. The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.
Intelligent focusing laser head 1. Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero.
2. Cooling:the collimating mirror, focusing mirror and nozzle have a cooling structure.
3. Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed 1. High strength, not easily deformed
The heavy-duty design ensures that the bed will not be deformed for many years, it is stronger and has a high tensile.
2. More stable
We choose rectangular tubes with thicker walls than common machines. It is well welded and makes the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.
Technical Parameters

Model	Plate and tube integrated laser cutting machine
Working Area	1500*3000mm
Power allocation	380V/220V±10%,50Hz/60Hz
Key Selling Points	cast iron bed
Max.moving speed	100m/min
Reposition accuracy	0.02mm
Min.line width	0.1mm
Positionig accuracy	0.03mm
Cooling system	Water Cooling System

---
