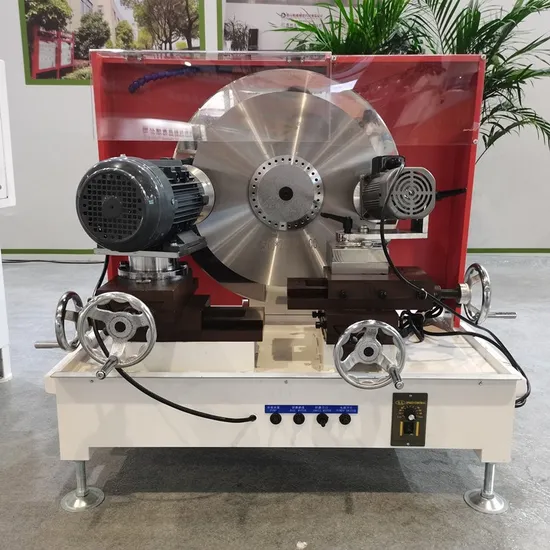

Round Wheel Kunsha, China Knife Grinder Circular Blade Grinding Machine

Product Description

Industrial Electric Knife Sharpener Professional Round Blade Grinding Tungsten Carbide Circular Blade Sharpener Grinding Machine
Round knife sharpener Detailed description: *The scope of use of this machine 1. Inner diameter of round knife: standard adjustable range Φ25.4mm, customized size is available. 2. Grinding diameter Φ50mm---Φ500mm 3. Grinding angle 0°-45° 4. Use voltage 220V 50HZ Round knife sharpener Host equipment 1. Spindle motor 1/4HP AC stepless variable speed motor 2. Large knife edge grinding 3/4HP AC 2880RPM Angle adjustment range +/-15 degrees-Waterproof motor grinding wheel CBNΦ125*Φ19*48t*3 3. Small knife edge grinding 1/8HP AC 2950RPM Angle adjustment range +/-15 degrees-Waterproof motor grinding wheel CBNΦ100*Φ12*29t*3 4. Cooling system 1/8HP AC 2850RPM spray cooling

Grinding machine configuration list
Application	Suitable for varity of round knife grinding
Inner diameter	Available range 25.4mm
Grinding diameter	50mm to 500mm
Grinding angle	0 - 30°
Power	220V 50HZ 1PHASE
Configuration
Main axle motor	Main axle 40w speed adjustable motor Taiwan Shenli;
Knife slope grinding	Knife slope 550W Nanjing gaoqi(Taiwan company) (Angle adjustable+/- 15°)
	Grinding wheel 125 x 48x16*3mm
knife edge grinding	Knife edge 140W Taiwan shenli (Angle adjustable+/- 15°)
	Grinding wheel CBN 100 x 29x12*3mm
Cooling pump	60W
Round knife fixture	100/160(standard size can grind OD350, over this size is optional parts)

High-quality raw materials
Materials are the foundation of products, and the company cooperates with many domestic and foreign suppliers of honest materials. In order to ensure the quality, the raw materials are subjected to multi-layer sorting, the materials are stable and the quality is consistent.
Vacuum heat treatment
Heat treatment is the "soul" of the product and the key to the product. The company took the lead in introducing the "vacuum heat treatment" technology. The blade is not deformed, and the hardness, toughness and wear resistance of the product reach the best
Imported high precision CNC equipment
Professional grinding masters and independent research and development team to meet various customer needs. The product undergoes multiple processes, professional grinding and polishing, and excellent workmanship. The precision of imported equipment can reach ±0.01-0.02mm. It has made outstanding contributions to the medical, lithium battery, film adhesive and other industries.
Testing equipment
The company uses optics, radiographic flaw detection and other technologies for product inspection, and each product can be put into the warehouse after passing the inspection.
package and transportation
we will pack the blades according to different kinds of blades to blades to avoid any damage.during transportation,please handle gently.
Our Company
Suzhou Shanggong Blade Co., Ltd is located in No. 66, Kaigui Road, Yushan Town, Kunshan. Our company covers around
6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testing
equipment which are used in processes from raw material to finished products.
We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.
Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as
electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
