Basic Info.
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Packaging Material
Plastic
Machine Type
Tube Filling and Sealing Machine
Filling Speed
60PCS/Min (Max)
Filling Accuracy
Within 1%
Suitable Tube Length
50-210mm Plastic
Suitable Tube Diameter
13-50mm Plastic
Applicable to
Plastic Composite Tubes and Aluminum Plastic Compo
Tube Feeding System
Obliquely Hanging Type Automatic Lining-up Tube Fe
Transport Package
Export Standard Package
Specification
2000*950*1900mm
Production Capacity
30set/Month
Packaging & Delivery
Package Size
205.00cm * 106.00cm * 180.00cm
Package Gross Weight
1100.000kg

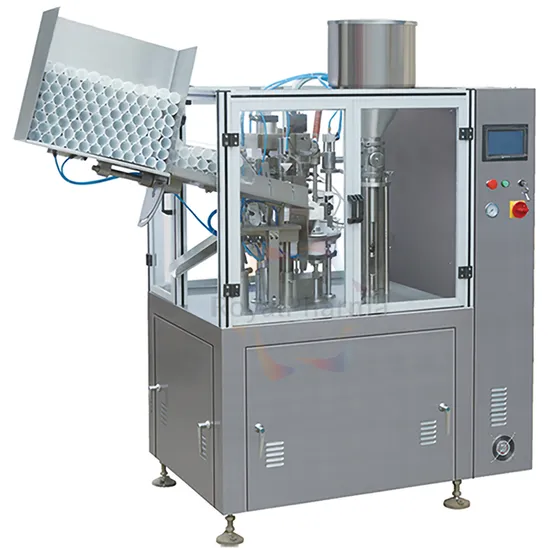

Product Description
Product Description Appliaction: widely used for cosmetics,food,chemical and pharmaceutical industry plastic composite tubes and aluminum plastic composite tubes.
Product Parameters
Model | NF-60 |
Filling Speed: | 60pcs/min (max) |
Filling Volume: | 5-250ml |
Filling accuracy: | ≤ ±1% |
Suitable tube length: | 50-210mm plastic, 50-180mm aluminum |
Suitable tube diameter: | Φ13-50mm plastic, 13-35mm aluminum |
Applicable to: | plastic composite tubes and aluminum plastic composite tubes |
Tube feeding system: | obliquely hanging type automatic lining-up tube feeding storehouse |
Power/Voltage | 1.1KW/ 220V/380V (Optional) |
Net Weight: | 850KG |
Dimention: | 2000(L)*950(W)*1900(H)mm |
Optional: | externally allocated refrigerator |
Optional: | barrel heat preservation device |
Optional: | blending device inside the barrel |
Optional: | automatically controlled feeding device (pump) |
Optional: | finished tube conveyor |
Company Profile Shanghai Royal Pharmaceutical Machinery Co.,Ltd is a professional manufacturer and supplier for pharmaceutical machinery, packing machinery and also production lines.
Our company possesses 25 senior staffs with over 10 years working experience in different fields, such as design, manufacture, Import & Export, quality control and after-sale service. Strong technical support, advanced production equipment, perfect testing and quality management system to make us have the ability to supply excellence products at reasonable price.
Our Advantages
Certifications
Cooperative Client
After Sales Service
Packaging & Shipping
FAQ
1.Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
2.Q: What payment terms you take?
A: We prefer T/T, but other terms also workable for us.
3.Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100day.
4.Q: How can I visit and check your company?
A:Our factory is located in Shanghai and Zhejiang Province. Headoffice lay in shanghai, Minhang District. From Pudong International Airport to our office need only 45 minutes. U can take the metro line 5 come to our office directly!
Any other doubts about our machine, please feel easy to contact with us.
Diana Wang
Sales Manager
Shanghai Royal Pharmaceutical Machinery Co., Ltd
Add: Room 2011, Zhongyi Industrial Park, No. 3399, Yuanjiang Road, Minhang District, Shanghai 201109
Web: www.pharmacymachine.en.made-in-china.com
>>
