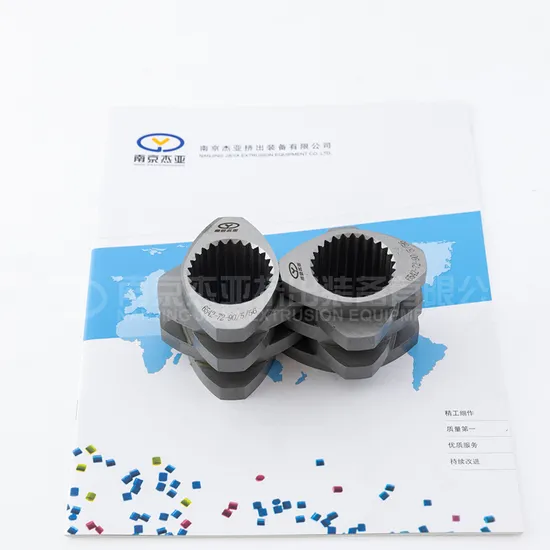

Twin screw extruder replacement parts in segment design wear-resistant material
Screw kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material.
Modular principle design makes the screw elements can be replaced by new parts if they were wearing away during use.
1. Conveying elements
The conveying screw component is mainly a thread structure, and its function is to convey the material and give the material a certain thrust so that the material can overcome the resistance encountered in the flow channel. Conveying screw elements are currently the most popular extruder screw elements, with a strong transport function, short residence time and good self-cleaning properties.
2. Kneading elements
The main function of the kneading screw element is mixing, which is used for the distribution and dispersion of the materials. The strength and weakness of the dispersion and distribution effect are determined according to the thickness of each disk. Meantime, the larger the angle, the stronger the shear. Conversely, the smaller the angle, the weak the shear.
....
Can be customized according to sample or drawing.
| Filling modification | PE, PP, EVA, ABS, PC, PS, etc+calcium carbonate, talc, glass beads, SiO2, aluminum hydroxide. Magnesium hydroxide, brocade oxide, sulfuric acid |
| PP, PA, ABS, etc. + iron powder, magnetic powder, aluminum powder, stainless steel wire, ceramic powder |
| Blending modification(rubber and plastic compounding, plastic alloy | PE, PP, PS+SBS, PP, PA+EPDM, POE, PP+NBR, EVA + silicone rubber, etc. |
| PA, PC+ABS: ABS+TPU: PBT+PET: PP+PE, etc. |
| Masterbatch | PE, PP, ABS, EVA, PS, PBT, PET, etc. + pigments and other additives |
| Functional masterbatch | Biodegradable masterbatch: PE, PS, PP + starch, etc. |
| Flame retardant masterbatch: PE, PP, PA, ABS, PBT, etc. + flame retardants and other additives |
| Polyethylene master batch,anti-fog and anti-aging, high thermal insulation masterbatch, cooling masterbatch, rheology modified masterbatch, anti-rust masterbatch, stiffening masterbatch, antistatic masterbatch, antibacterial masterbatch |
| Carbon black masterbatch: PE, EVA, ABS, PET, etc. + carbon black |
| Glass fibre (Carbon fibre)Reinforcement (MD model short fibre) | PP, PBT, ABS, AS, PA, PC, POM, PET, PEEK, PPO, PES, etc. + long glass fiber or short glass fiber |
| PP, PBT, ABS, AS, PA6, PA66, PC, POM, PET, etc. + long carbon fiber or short carbon fiber |
| Thermoplastic elastomer | TPR, TPU, TPV, SBS, SEBS, SIS, etc |
| Special material | EVA, PU hot melt adhesive, silicone adhesive, UHMWPE spinning |
| Fluororubber, fluoroplastics, LCP, PEEK, PES, PL, PSU, etc. |
| Optical cable covering material, acetate fiber, PP cigarette filter material, conductive plastic |
| TPR, PU, EVA foam sole material |
| Luminous plastics, antibacterial plastics, anti-UV plastics, PE cross-linkable pipe materials food, pet feed |
| Various cable materials | HDPE, LDPE, LLDPE, MDPE, PP, EVA Insulation material, sheath material, PF Radiation cross-linked cable material, PE Silane cross-linked cable material |
| Flame retardant polyolefin cable materials, low smoke halogen-free flame retardant cable materials |
| Low smoke and low halogen flame retardant PVC cable material |
| Reactive extrusion | Polyamide polycondensation reaction, polyester melt polymerization reaction, polyurethane polycondensation reaction, polycarbonate polycondensation reaction, polyoxymethylene bulk continuous polymerization reaction, PMMA polymerization |
| Devolatilization | Chlorinated polypropylene, chlorosulfonated polyethylene, fluorine rubber, butadiene rubber, SBS, EPDM, SEBS, SIS, etc. |
| Powder coating | Polyester type, epoxy type, acrylic vinegar type, polyurethane type, acrylic vinegar, phenol resin, etc. |
We're a factory, located in Lishui, Nanjing city with 20 years experience.
The greatest advantage over other vendors is our strong processing capability .
Core parts of the twin screw extruder is all manufactured at our own factory which makes the production cost controllable.That's why our machine enjoy a high performance to price ratio.
Professional Tech. and R&D team
Our factory is located in NO. 337 East Zhening Road, Zhetang Town, Lishui, Nanjing, Jiangsu Province, China.
(1) You can fly to Nanjing Lukou Airport directly. We will arrange to pick u up at Lukou airport.
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed bullet train, then we will pick you up at Nanjing south railway station.
We will keep you updated by photos and videos. Once the machine is completed and ready for shipment, we will inform you to come to inspect the machine.
Normally, 45 days from the date we receive your deposit.
One-year warranty for the whole machine.
