0.2s High Accuracy All Parameter Measuring 3 Phase Meter Power Quality Analyzer

Product Description

Product Name: 0.2s High Accuracy All Parameter Measuring 3 Phase Meter Power Quality Analyzer

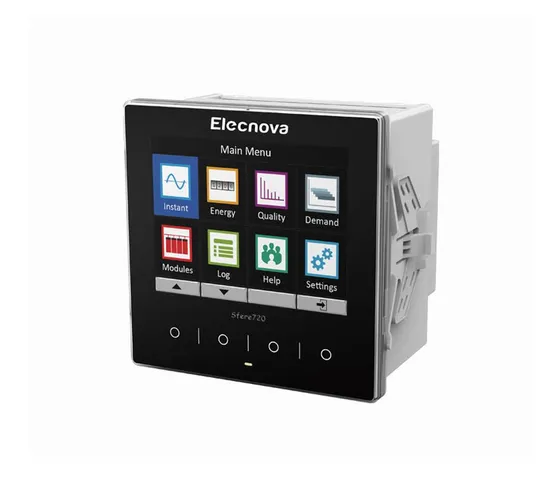

Sfere720 is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720 also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.

Display Mode		Sfere 720: LCD, Sfere720:TFT
	V/A	0.002
	P/Q/S/PF	0.002
Accuracy	F	±0.01Hz
	±kWh	Class 0.2S
	±kvar	Class 2
	Rated value	AC 100V/ 380V
	Overload	Continuous: 1.2Vn Instantaneous: 2Vn/1010s
Voltage Input	Burden	≤0.1VA(per phase)
	Impedance	≥1.7MΩ
	Frequency	45Hz~65Hz
	Rated value	AC 1A/5A
	Overload	Continuous: 1.2In Instantaneous: 2In/5s
Current Input	Burden	≤0.2VA(per phase)
	Impedance	≤20mΩ
Auxiliary Supply	Working range	AC 80~270V 50/60Hz, DC 100~350V
	Consumption	≤5VA
Communication Port		RS485, Modbus-RTU, 2-wire, up to 38.4kbps
Energy Pulse Output		1 photocoupler output, pulse width(80±20%)ms
Digital Input		2 AC wet contact inputs, Isolation: 5kVAC
Relay Output		2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC
	Operating temperature	-25ºC~70ºC
	Storage temperature	-30ºC~80ºC
Environment	Relative humidity	≤93%
	Altitude	≤2500m
Insulation		≥2kVAC
IP Degree		Front IP64, Rear IP20

Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.


Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.


Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.


Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.


Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

---
