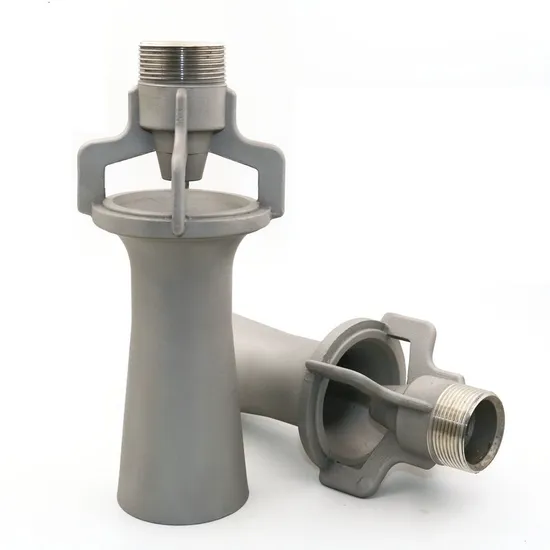

1/2" Ss Plastic Mixed Fluid Injector Venturi Eductor Tank Mixing Nozzle

Product Description

Design features Proper parameters are selected to design the geometric curved surface, according to Berboulli flow theory of gravity. The fluid that gush out from the taper nozzle with a high velocity form a low pressure area round the outlet. Because of the different pressure between areas and the fluid momentum act on input liquid, the high velocity fluid and the input liquid is introduced into the "mixdiffuse" chamber with the proportion of 1:4 and then spout the nozzle, offering a air-free mix of solution. Effective, economical way to circulate liquids in closed or open tanks

Product Name	K series mixing eductor nozzle
Material	Stainless Steel, Brass,Plastic
Thread Type	NPT, BSPT
Thread Size	1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'',1-1/2"
Flow Rate	11.3-1540L/Min0.5-4bar
Packing	Plastic Bag+ Carton, Special requirements are available
Custom Made	Available

MATERIAL CHARACTERISTIC:
Constructed of carbon fiber -glass-reinforced
Polypropylene of SS316 Maximum operation temperature 120 centigrade, 300 centigrade for stainless steel.
Corrosion resistance and aging resistance
FUNCTIONS:
Provide a honogeneous fluid mix without the use of air agitation precluding oxidative deconpasition of air agitation of the solutions.
Improve circulation of the turbuent flow and optimized mixture of the solutions.
Assures uniform mixture of solutions and improve product quality.

---
