US$20,358.00
|
1 Piece
(MOQ)
|
Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Grout Discharge
Grout Pump
Cement Feed
Screw Conveyor
Max Pump Horizontal Distance
150m
Dimension
6058*2438*2591mm
Colour
Yellow, White, Blue, or Others
Cement Silo
Horizontal Container Cement Silo
Transport Package
Standard Packing
Production Capacity
100sets/Month
Product Description

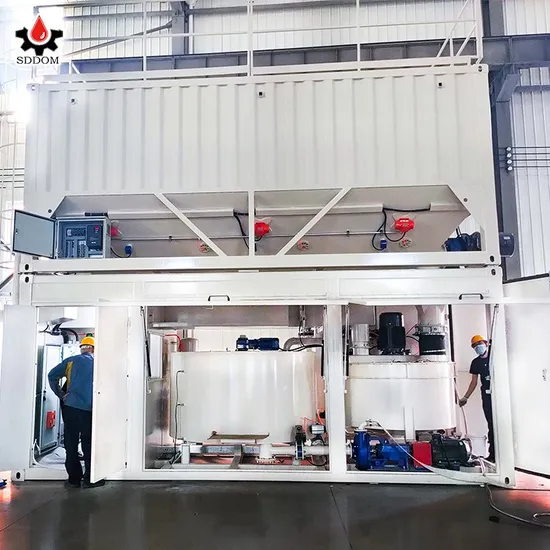

Tecniwell Jet-Grouting Cement and Water Grout Mixing Machine in Itlay (CSM40) Product Description
Grout mixing plant is a combination of mixer, agaitator and pump. It comes with an electronic load cell weighing system for cement, water and other components. The electronic control panel allows the selection of up to 10 components and 20 mixing formulas for optimum grout quality at any possible grouting or jet grouting project. With automatic and manual operation mode, the grout mixing plant can be high-efficiently produce fresh grout continuously and saving labour cost.
Product Parameters
Basic parameters
| No. | Name | Grout mixing plant |
| 1 | Model | CSM40 |
| 2 | Material | Carbon steel
Mixing tank thickness 8mm
Agitator thickness 6mm |
| 3 | Production capacity | 40m3/h |
| 4 | Total power of grouting machine | 44 kw |
| 5 | Max. pump vertical height | 30m |
| 6 | Max. pump horizontal distance | 150m |
| 7 | Powder feeding way | screw conveyor |
| 8 | Grout output method | Centrifugal pump |
| 9 | Transport | as an SOC 20'' container,
or loaded into one 20GP container |
| 10 | Dimension | 6058*2438*2591mm |
| 11 | Weight | 6800 kg |
Accessories
| Name | Qty |
| Mixing system | 1 set |
| Agitating system | 1 set |
| Water system | 1 set |
| Additive system | 1 set |
| Pneumatic system | 1 set |
| Control system | 1 set |
| Container structure | 1 set |
Our Advantages
Features
Grout Mixing Plant is special designed for cement and water mixed project.
Continuous mixing for fresh grout.
Full auto control system with SIEMENS PLC,
Main electric parts are SIEMENTS/Schneide brand.
Container design can be shipped as container to save shipping fees.
Container cement silo can be on top of container to supply cement.
Features
Product details
Application in working site
>>
