Product Details
Product Description
Product Description

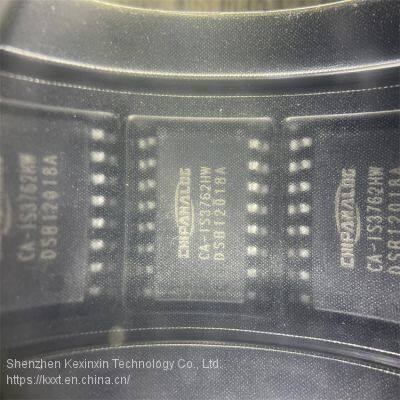

CA-IS3762HW
1 Product characteristics
• Signal transmission rate: DC to 150Mbps
• Wide power supply voltage range: 2.5V to 5.5V
• Wide temperature range: - 40 ° C to 125 ° C
• No initialization required
• Default output high and low level options
• Excellent electromagnetic immunity
• High CMTI: ± 100kV/µ s (typical value)
• Low power consumption, (typical value):
▪ Current is 1.5mA/channel (@ 5V, 1Mbps)
▪ Current is 6.6mA/channel (@ 5V, 100Mbps)
• Accurate timing (typical value)
▪ 8ns propagation delay
▪ 1ns pulse width distortion
▪ 2ns propagation delay deviation
▪ 5ns minimum pulse width
• Isolation voltage up to 5KVRMS
• Barrier life:>40 years
• Three-state output with enable end
• Schmidt trigger input
• Narrow body SOIC16-NB (N) and wide body SOIC16-WB (W) packages, conforming to
RoHS compliant
2 Application
• Industrial automation
• Motor control
• Medical electronics
• Disconnector power supply
• Solar inverter
• Isolated ADC, DAC
3 Overview
CA-IS376x is a high-performance eight-channel digital isolator with precision
And low power loss. When isolating CMOS digital I/O,
CA-IS376x device can provide high electromagnetic immunity and low radiation. Owner
All versions have Schmidt trigger input, which can achieve high anti-noise performance.
The logic input and output buffers of each isolated channel are made of silicon dioxide
(SiO2) insulated barrier isolation. CA-IS3760 six channels are on the same side
Up; CA-IS3761 has five forward and one reverse channels, CA IS3762 has four forward and two reverse channels, and CA-IS3763 has
Three forward and three reverse channels. All equipment has failsafe mode
Type option. If the input side power supply is powered down or the signal is lost, for the suffix
For devices with L, the default output is low. For devices with suffix H
Standby, the default output is high.
CA-IS376x device has high insulation capacity, which helps prevent data bus
Or the noise and surge on other circuits enter the local grounding terminal, thus interfering
Or damage sensitive circuits. High CMTI capability is expected to ensure positive digital signal
To ensure transmission, CA-IS376x device adopts 16-pin narrow-body SOIC and 16-lead
Wide body SOIC package. All products have 3.75kVrms isolation
Rated value, wide-body packaged products support insulation and withstand voltage up to 5kVrms.
Device information
Part No. Package size (nominal value)
CA-IS3760,
CA-IS3761,
CA-IS3762,
CA-IS3763
SOIC16-NB (N) 9.90 mm × 3.90 mm
SOIC16-WB(W) 10.30 mm × 7.50 mm
Simplified channel structure diagram
Driver
Isolation
Barrrier
RX VOUT
Channel B side
VIN
Channel A side
Schmitt Trigger Mixer Driver
GNDA GNDB
Channels A and B are separated by isolation capacitors.
GNDA and GNDB are respectively connected to the isolation and grounding of side A signal and side B power supply
price: 1.6-2
>>
