Bba Screw Assembly Machine Screw Inserting Automation Robot Robotic Screw Fix Machine Automation for Assembly Factory Screw Magnetic Feeding Robotic Machine

Product Description

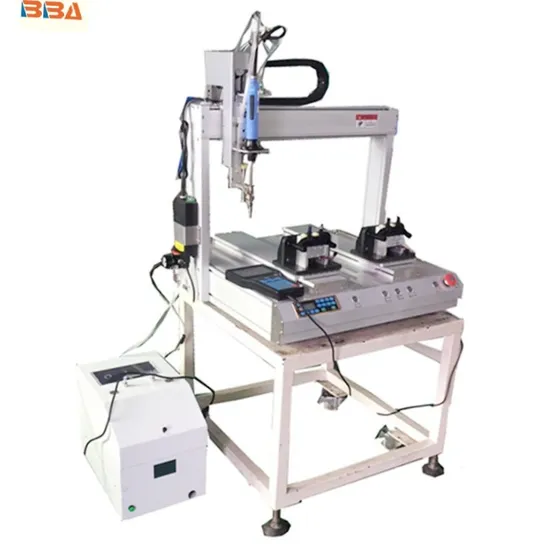

XYZ axis screwdriver machine with blow type screw feeder to blow out screws directlyAutomatic screw machine is composed of an automatic screw feeding system and a five-dimensional automatic manipulator. It has the detection of screw slip, no screw, floating lock, etc. Screw fastening robot can complete the workload of 3-6 people at the same time with fully automatic cooperation, and only needs one person to operate, which greatly improves the production efficiency, screw driving robot is high universa, only needs to change the fixture to adjust the program.
1. The double-station full-automatic alternate operation machine can work non-stop when the products on one of the workbenches is locked and can be loaded on the other workbench. It is safe, convenient, fast, and efficient.
2. Reduce the labor intensity of workers. Workers only need to pick and place products and the machine can automatically complete the screwing, which greatly reduces labor intensity.
3. Simple operation. The display screen visualizes the operator to quickly grasp the operation and debugging: one worker can manage several machines at the same time
4. Improve product quality. Accurate torque and convenient adjustment to ensure locking quality
Product Description

Machine extenal accessories

Customization available
Full Series of BBA Screwing Machines

Model	BBA-331LS (Single Y platform)		BBA-5441LS (Double Y platform)		BBA-6441LS (Dual screw feeding systems)		CUSTOMIZED
Power supply	AC 220V 50/60HZ
Stroke	X	300mm	X	500mm	X1/X2	600mm	To order
	Y	300mm	Y1/Y2	400mm	Y1/Y2	400mm
	Z	100mm	Z	100mm	Z	100mm
Maximum Load Weight	10KG (for work platfrom)						To order
Screwdriver torque	0.015~2.5N.m						More than 3.0N.m
Moving speed	10-800mm/s
Air pressure	0.5-0.7MPa
Position accuracy	±0.02mm/axis
Program capacity	999 groups/1000 points per group
Motor system	Micro Precision Stepping Motor
Transmission mode	Precision toothed belt+guide rail
Universal screws	M1-M8
Control panel	Teaching pendant with display screen
Work efficiency	1.2~1.5s/pcs
Work environment	Temperature: 5-40ºC Humidity: 20-90%
Weight	70kg		90kg		120kg		To order
External Machine Size(L*W*H)	700*630*700mm		820*730*700mm		920*730*700mm		To order

Applicable screws
Customer case

Packaging & Shipping

Company Profile

FAQ

---
