Heavy Duty Universal Milling Machine (Lunan milling machine)

Product Description

Fresador ,Horizontal Column-and-Knee Type Milling Machine,universal milling machine.
Feature :
Hardened and ground table surface Spindle Taper ISO50
SAFETY Electrical system
One central panel
SEASY MAINTENANCE
1700x400Mm work table
X axis rapid feed 1800 mm/min
table swivel 45 degree
X,Y,Z axis travel 900x400x405mm
T-slot 3/18/70mm
Column guideway Rectangle
The machine is composed of pedestal, column, two-section revolving head, ram, operating platform, slide, rise-and-fall slide,
cooling system and electric system.

ITEM	TUM1760
Spindle taper	ISO50(V) ISO50(H)
Distance from spindle to table	30-405mm
Spindle speeds	12steps 60-1700(V) r.p.m. 12steps 60-1800(H) r.p.m
Table size	1700x400mm
Max. Rotations angle of table	±45°
Table travel (X/Y/Z)	900x400x405mm
Feeding travel (X/Y/Z)	860x350x400mm
Feeding rang of longitudinal travel	8steps 30~600mm/min
Feeding rang of cross travel	8steps22~410mm/min
Feeding rang of vertical travel	8steps 15~220mm/min
X-axis rapid feed speed	1800mm/min
Y-axis rapid feed speed	1300 mm/min
Z-axis rapid feed speed	600mm/min
Feed motor	1.5KW
Max. Weight of work piece	400KGS
T-slot number/width/distance	3/18mm/70mm
Column guide way	Rectangular guideway
Cross slide way of table	Rectangular guideway
Longitudinal slide way of table	Dovetails guideway
Main motor	4KW(V ) 4KW(H)
Coolant pump power	90W
Package size	2150x2100x2250 mm
N.W./G.W.	2650/2850KGS

Accuracy testing
Gear box transmission on XYZ axes
Milling machine accessories, wrench, horizontal arbor, draw bar, milling chuck, drilling chuck,
Vertical parts
Electrical Auto lubrication system , Digital readout guideway on X,Y,Z axis
Ce Electrical system, Touch-stop on X axis work table

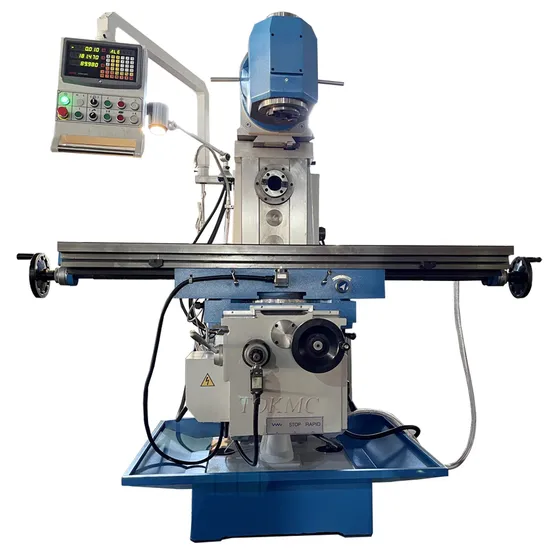

Whole size milling machine
Back side
Company Information
FAQ
-When do you delivery?
Depending on your community we delivery ,10-30 days
-Is machine tested ?
The accuracy , noisy will be tested.
Machine will be running one hour before despatch
-How do I pay? Do you accept cash or L/C?
We accept Interac e-transfers .cash, and T/T ,L/C
-How is the warranty ?
12 months
- If i have a problem, Will you be available by email to assist with solving the problem.
Video techanical support, online service ,We can answer it in 24 hours.
