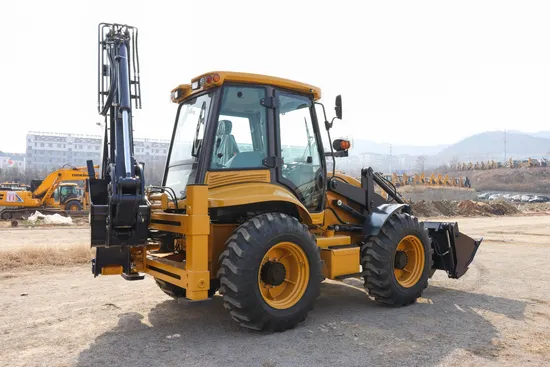

China Manufacturer Highrich Brand Hr333D Hot Sale Excavator Backhoe Loader

Product Description

Product Description
1. The body is compact, flexible and convenient, energy-saving and efficient.
2. Coherent compound action, one drag two operation handles, simple and easy to operate
3. The excavator is designed in the form of a slideway, which has the advantage of folding side digging and sliding freely.
4. Equipped with auxiliary equipment oil circuit, practical auxiliary equipment can be upgraded to achieve a truly multi-purpose function of one machine
5. Easy maintenance and easy maintenance, low cost of use and maintenance.
At present, the reduction of labor force and mechanization instead of manpower is the development trend. Backhoe loader is a kind of high-efficiency, energy-saving and multi-functional construction machinery equipment. It is widely used in small and medium-sized roadway operations with a width of more than 2 meters, and is a practical equipment for new urbanization of the country's new rural construction.
Product Parameters

1	()Total length(bucket at ground)	6450±80mm
2	()Total width (Outer edge of tire)	2550±20mm
3	(Bucket width)	2490mm
4	()Total height (cabin top)	3120±10mm
5	()Total height (digging boom top)	3940 ±20mm
6	(Wheel base)	2335±10 mm
7	(Wheel tread)	2139 ±10mm
	(Load main technical parameter)
1	( Rated load)	2500KG
2	(Operating weight)	10050kg
3	(Rated bucket capacity)	1.2m³
4	(41°)Max. Dumping height (41° dumping angle)	3050±50 mm
9	( Dumping distance)	870±20 mm
10	(Turning radius)	5750±50mm
11	( Tires outside)
	Digging main technical parameters)
1	(Rated digging bucket capacity)	0.3m³
2	(Max. Digging depth)	3820±20 mm
3	( Max. Digging radius)	5345±20mm
4	( Max. Loading height)	3740±20mm
5	( Max. Digging force)	5100kgf
6	( Max.Digging height)	5470 ±20mm
7	(Lifting force at Max. Digging radius)	1220kg
8	(Telescopic arm)	5213±20 mm
9	(Telescopic arm)	4840±20m
10	(Telescopic arm)	6510±20mm
	Engine
1	(Engine model)	YC4A105Z-T20
2	(Cooling type)	Water cooling)
3	(Rated power)	75 (kW)
4	(Displacement)	4.8(L)
5	( Rated speed)	2200(r/min)
6	(Max. Torque)	400(N.M)
7	( Manufacturer)	YUCHAI
	Transmission
1	Hydraulic torque convertor	( Model)	315
		(Cooling way)	Pressured oil circle
2	(Gearbox)	(Model)	28
		(Type)	Mechanically Operated Hydraulic Synchronized Shift
3	(Driving axles)	l Model)	WZL100
4	(Gear shift)		4 F, 4 R Forward 4 Backward 4
	Speed(F/R)km/h		Forward1) 1 - 5 km/h Forward2) 2 - 10 km/h Forward3) 3- 18 km/h Forward4) 4- 32 km/h Backward1) 1- 5 km/h Backward2) 2- 10 km/h Backward3) 3- 18 km/h Backward4) 4- 32 km/h
1	Tyres model)		16.9-28
2	(Hydraulic system )
3	(Working pump displacement)		63ml/r
4	(Working pump pressure)		20Mpa
5	(Diverter model)		BZZ5-250
	()Digging attachments(hydraulic hammer)
1	(Rod diameter mm)		68-70
2	(Working pressure Mpa)		11-14
3	(mpact frequency)		500-900
4	Flow scope L/min )		25-45
5	kinetic energy KN)		49
	(Oil capacity)
1	(Hydraulic oil tank)		125
2	(Fuel tank)		125
	388H 388H standard configuration
1	Engine		()YUCHAI (II2)
2	cab		Anti-roll structure
3	air conditioner		, Have,Mechanical control
4	(Gearbox)		SHANMON
5	Bridge		SHANMON
6	Hydraulic pump		Jinan Quancheng
7	Steering gear and priority valve		Jining Eaton
8	Breaker pipeline		reserved
9	carriage		Hydraulic side shift
10	wheel		,-Four-wheel steering, tire size 16.9-28

Detailed Photos
Certifications

Packaging & Shipping

Company Profile

FAQ
1.Are you manufacture or trading company ?
we are a group company , include five middle-sized factory ,one high technology developer company and a professional internation trade company. Supply from design - production - publicity - sell -after sell work all the line service team .
2.What's the main products ?
mainly support construction machinery , such as loader , skid loader , excavator , mixer , concrete pump , road roller , crane and etc.
3.How long is the warranty period ?
Normally , products have one year guarantee period .
4.What is the MOQ ?
One set .
5.What's the policy for the agents ?
For agents ,SITC supply the dealer price for their area , and help to do advertising in their area , some exhibitions in agent area also be supplied . Each year , service engineer will go to the agents company to help them tread the technical questions.
6.What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

---
