Product Description
Product Description

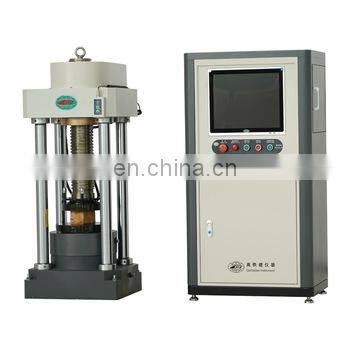

Product DescriptionThe series of test machines are hydraulically powered, using electro-hydraulic servo control technology rock, mortar, brick, concrete and other building materials to test the mechanical properties of compression, showing the loading force value, loading speed and loading curve. The test data is automatically processed, stored and printed.1. Using Siemens motor, torque and speed are stable.2. Automatic servo measurement and control system, the data is accurate and reliable.3. Built-in radial piston oil pump, stable output and low noise.Maximum test force(KN)HYE-2000HYE-2000AHYE-2000BTest accuracyLevel 1Level 1Level 1Space adjustment methodPad adjustmentManual screw sdjustmentElectric screw adjustmentPison stroke808080Sensor typeOil pressureOil pressureOil pressureMaximum spacing between two pressure plates(mm)400400400Upper platen size(mm)Φ225240*240240*240Lower platen size(mm)Φ295350*260350*260Motor power(KW)111Mainframe dimensions(mm)900*400*1250985*600*800985*600*800Control cabinet dimensions (mm)650*450*1250650*450*1250650*450*1250Machine weight(kg）920900910Company ProfileCangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment. It also has warehouse, be assured for sufficient supply. We are continuing to design and produce new production to satisfy customers’ request. Welcome to visit us for business negotiation!Factory WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQQ1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester.Q2:Where is the loading port?A:Qingdao port or tianjin port.Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred.Q4:What certificates do you have?A:We have ISO 9001.Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements.Q6:How long is the production cycle after ordering?A:General it is about 7-20 days.Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
>>
